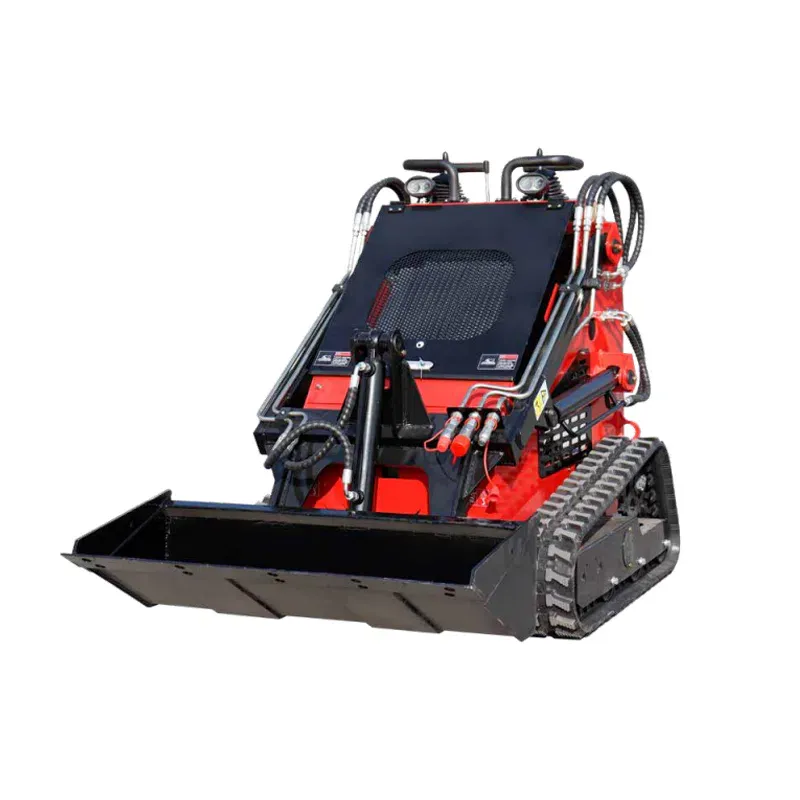

The HT320T Skid Steer Loader is a compact and versatile mini loader designed for efficient material handling, landscaping, construction, and farm applications. Equipped with reliable RATO or Briggs & Stratton engines, the HT320T delivers stable power, flexible maneuverability, and strong lifting performance in narrow working spaces. With a compact body, easy operation, and powerful hydraulic system, it is an ideal solution for small to medium-sized jobsites requiring high efficiency and low operating costs.
HT320T Skid Steer Loader Parameter
| Model:HT320T | ||||
| Max working height | 2120mm | Engine | RATO Engine R420 | Briggs & Stratton Engine 13.5HP |
| Max pin height | 1865 mm | Rated Power (KW) | 9.7Kw/3600rpm | 10Kw/3600rpm |
| Max Dumping height | 1405 mm | Rotating speed (rpm) | 3600 | 3600 |
| Max Dumping distance | 575mm | Noise (Db) | ≤95 | ≤95 |
| Max Dumping Angle | 37° | Hydraulic System | ||
| Total height | 1350 mm | Pressure (Mpa) | 0-17 | 0-17 |
| Ground clearance | 121 mm | Flow rate | 0-18L | 0-21.6L |
| Wheel base | Operating Load | 250 Kg | 250Kg | |
| Overall length without bucket | 1495 mm | Bucket Capacity | 0.15m³ | 0.15m³ |
| Total width | 1021 mm | Max Lifting Force | 360 Kg | 360 Kg |
| Bucket width | 1080mm | Travel Speed | 0-4.5Km/h | 0-4.5Km/h |
| Total length with bucket | 2245 mm | Operating Weight | 830 Kg | 830 Kg |
overall length without the bucket after folding the pedal.
| 1990 mm | Oil | ||
| Fuel tank | 7L | 7L | ||
| Engine oil | 1.7L | 1.7L | ||
| Hydraulic tank | 37L | 37L | ||
