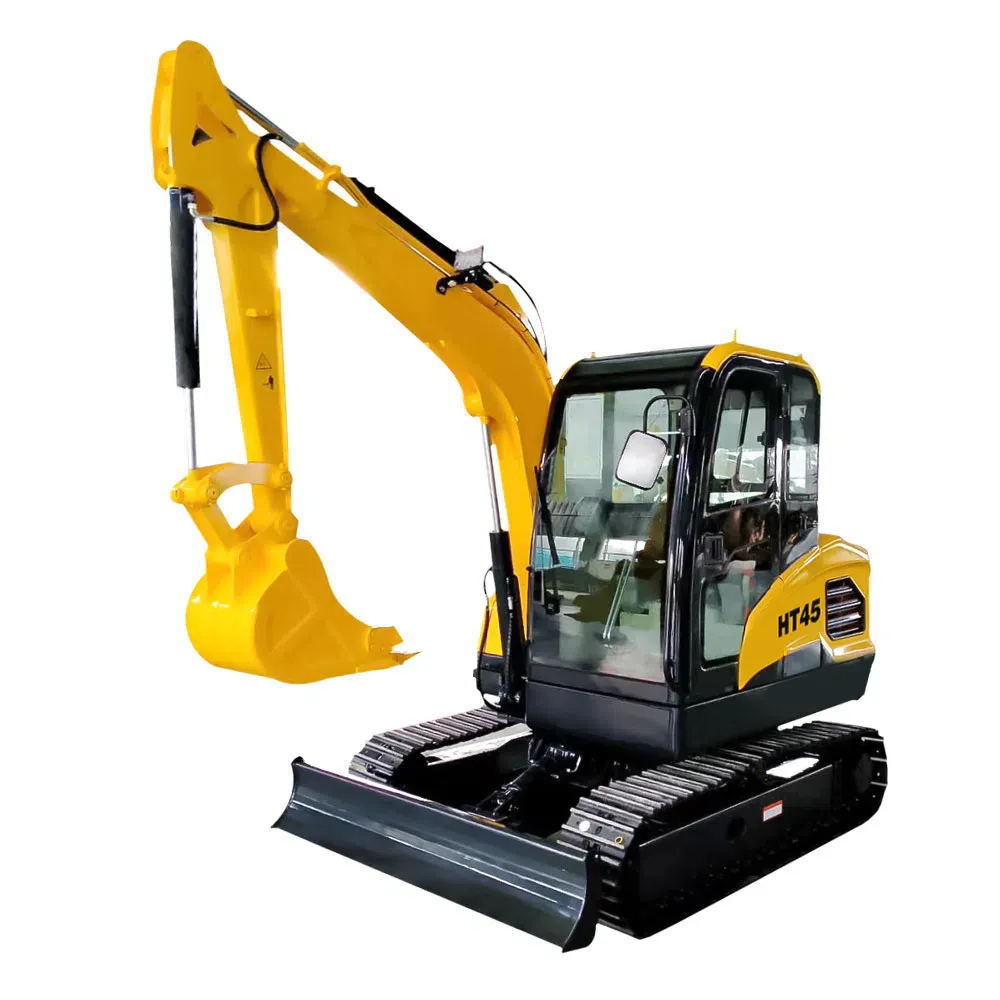

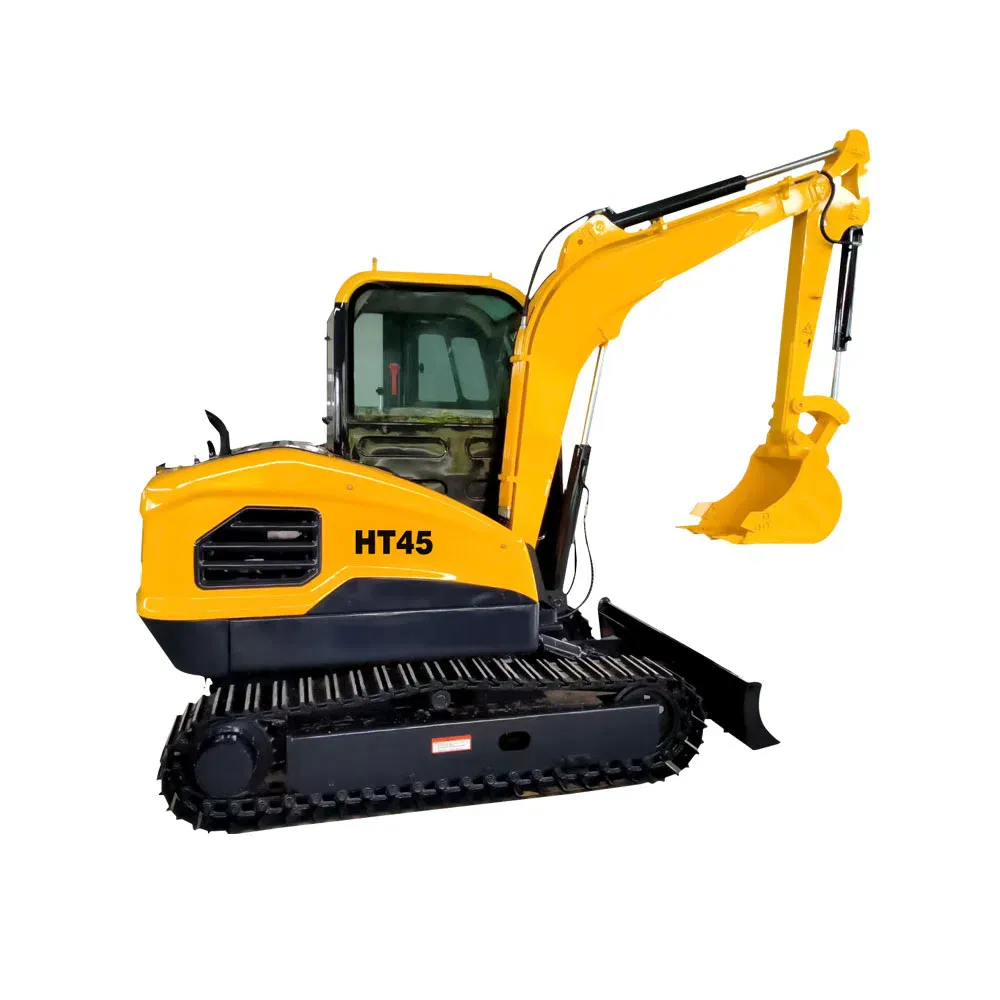

HT45 4.5T Small Excavator Features
*High fuel efficiency, Super power
*Lower fuel Consumption, High configuration, Superior performance
*Saving energy and protecting environment
Product Parameter
| 0verall Length(ern lovered) | 4400mm |
| 0verall Height | 2200mm |
| Vidth | 1530/1600mm |
| Track witdth | 300mm |
| Total track length | 2175mm |
| Track gauge | 1703mm |
| Platform ground clearance | 557mm |
| Working Range | |
| Max. Digging Height | 4450mm |
| Max. Dumping Height | 3050mm |
| Max. Digging Depth | 2545mm |
| Max. Digging Distanc | 4630mm |
| Max. Digging Radius | 4730mm |
| Min. Radius of gyration | 1820mm |
| Max. Lifting height of earth shovel | 359mm |
| Max. Digging depth of dozer | 268mm |
| Min. Tail sving radius | 1170mm |
| ENGINE | |
Engine model | ZN490 |
Power | 34 KW |
| Cooling method | water -cooling Diesel engine |
| HYDRAULIC SYSTEM | |
| Operating Pressure | 22mpa |
| Walking motor | Two speed plunger |
| Rotary motor | Variable plunger |
| The Main Pump | 32cc plunger 32cc |
Flow | 99/min |
| PERFORMANCE PARAMETER | |
| Climbing ability | 35° |
| Max. digging force | 55. 6KN (5560) |
| Travel speed | 2.4/4.6km/h |
| Rail contact pressure on the ground | 34.8kpa (0. 355kgf/cn2 ) |
| Specification | |
| Bucket Capacity | 0. 26m” |
| Fuel reservoir | 60L |
| Hydraulic tank capacity | 75L |
| Operating Weight | 4000kg |
