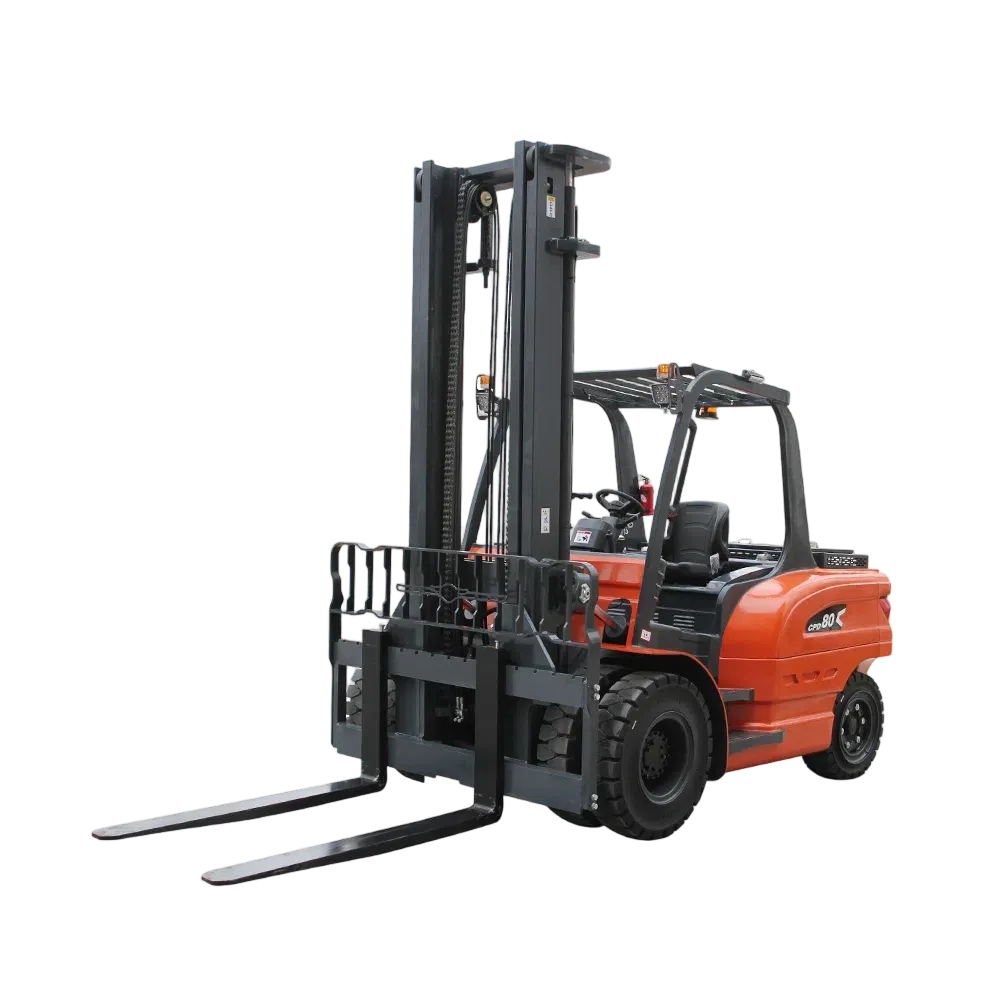

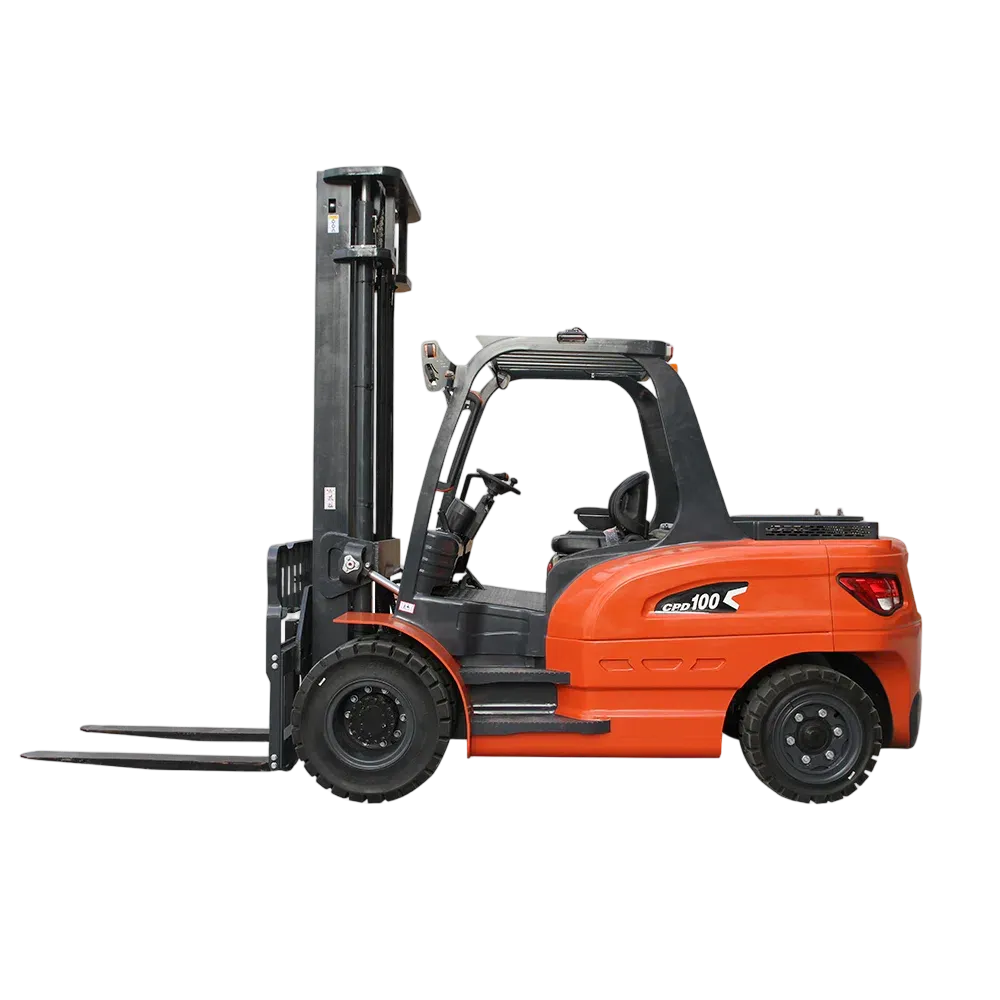

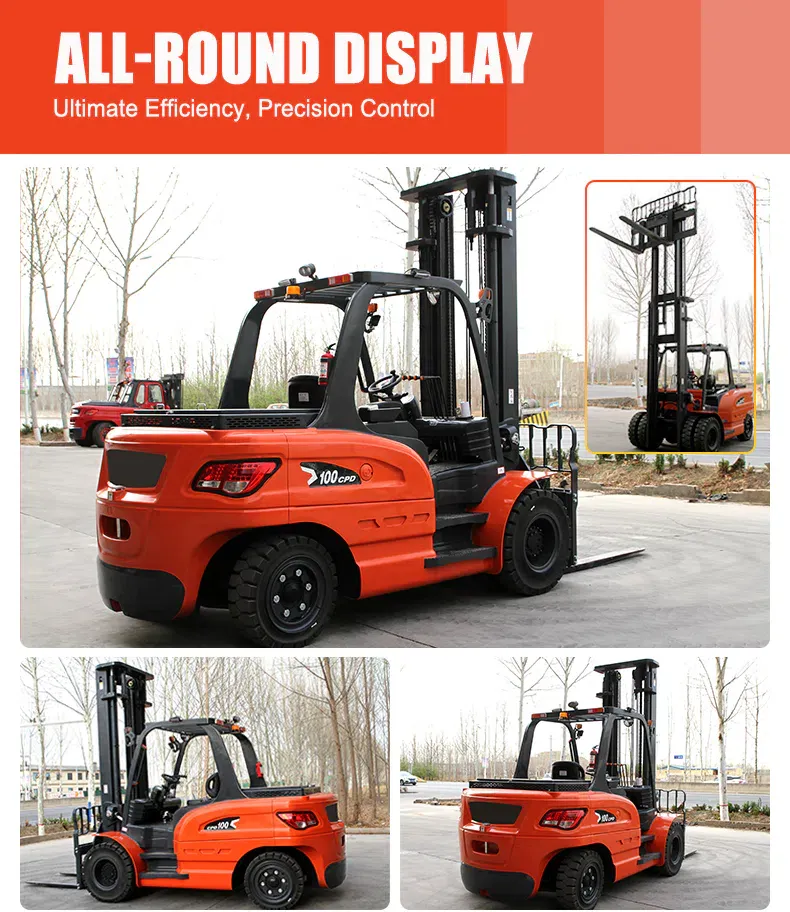

HTCPD100 Electric Forklift

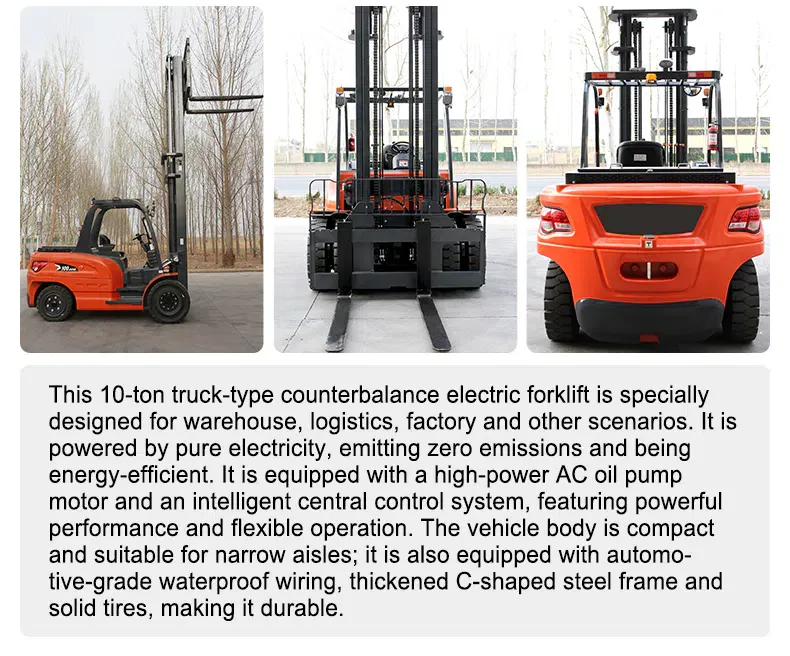

This 10-ton truck-type counterbalance electric forklift is specially designed for warehouse, logistics, factory and other scenarios.
It is powered by pure electricity, emitting zero emissions and being energy-efficient.

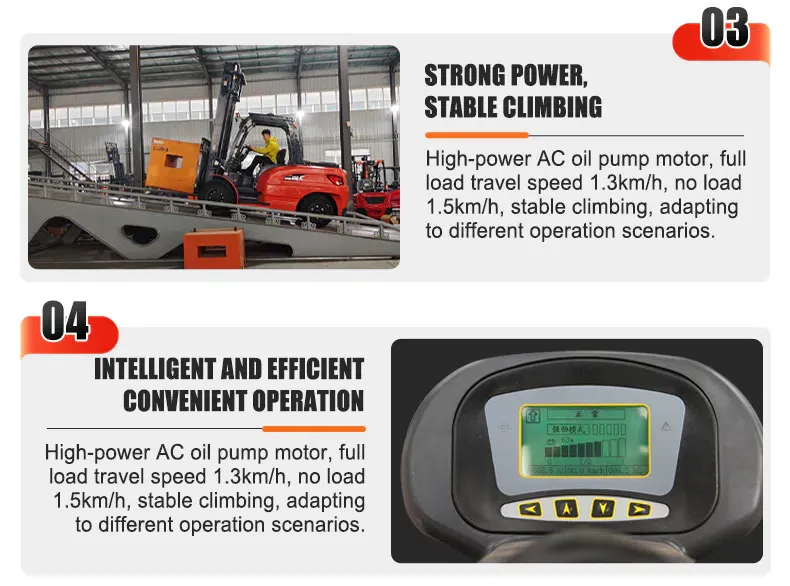

It is equipped with a high-power AC oil pump motor and an intelligent central control system, featuring powerful performance and flexible operation.

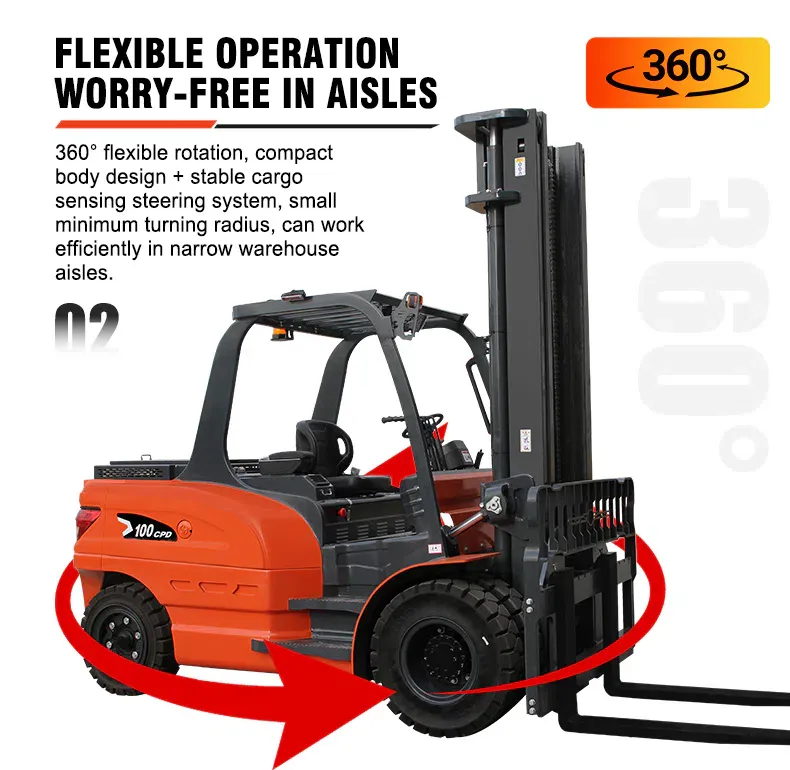

The vehicle body is compact and suitable for narrow aisles;

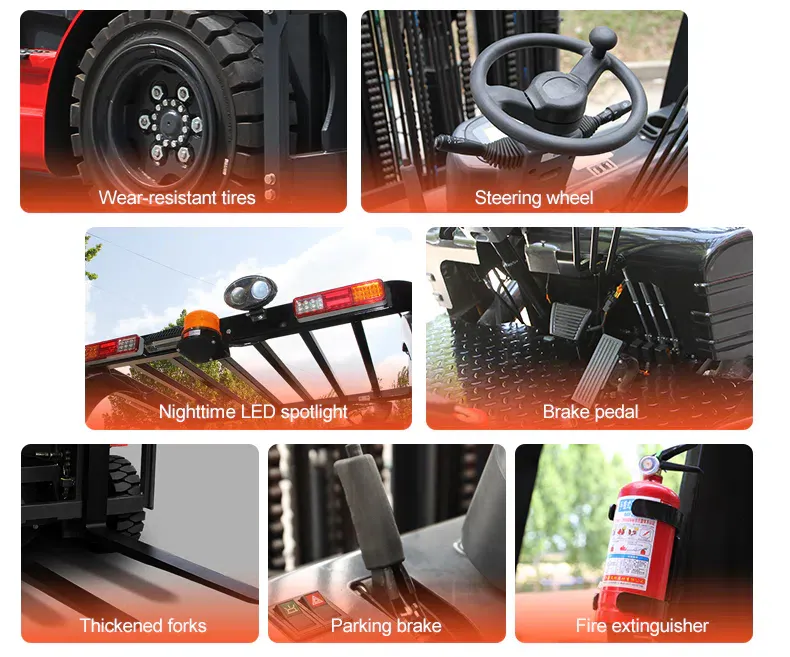

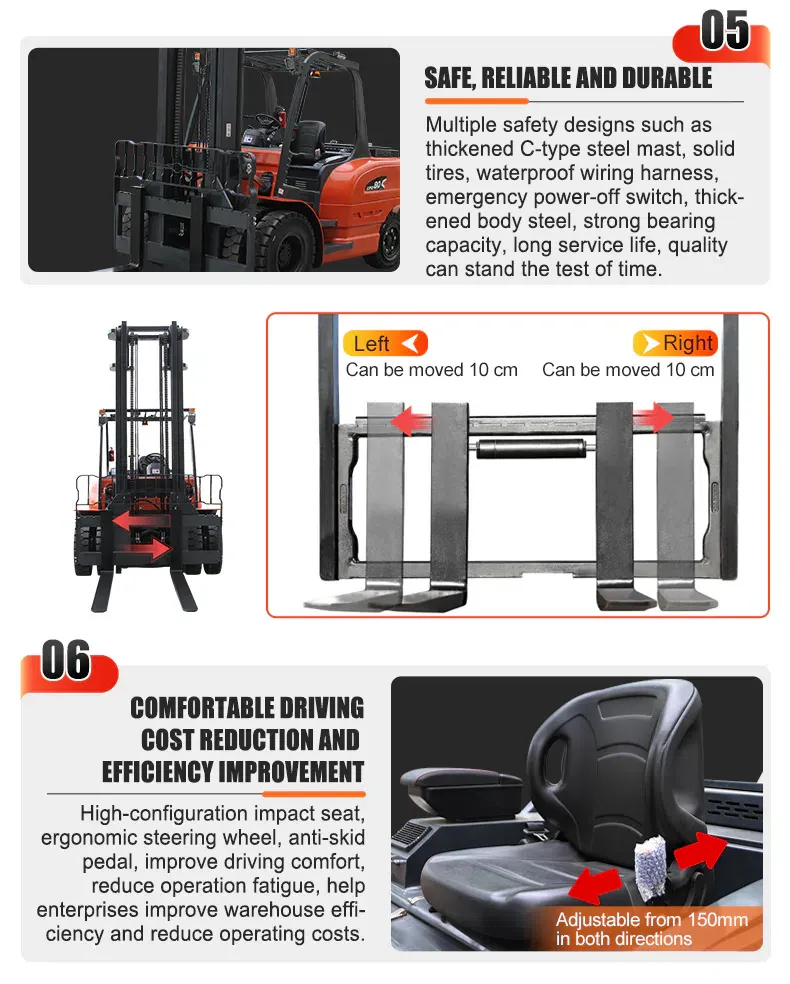

it is also equipped with automotive-grade waterproof wiring, thickened C-shaped steel frame and solid tires, making it durable.

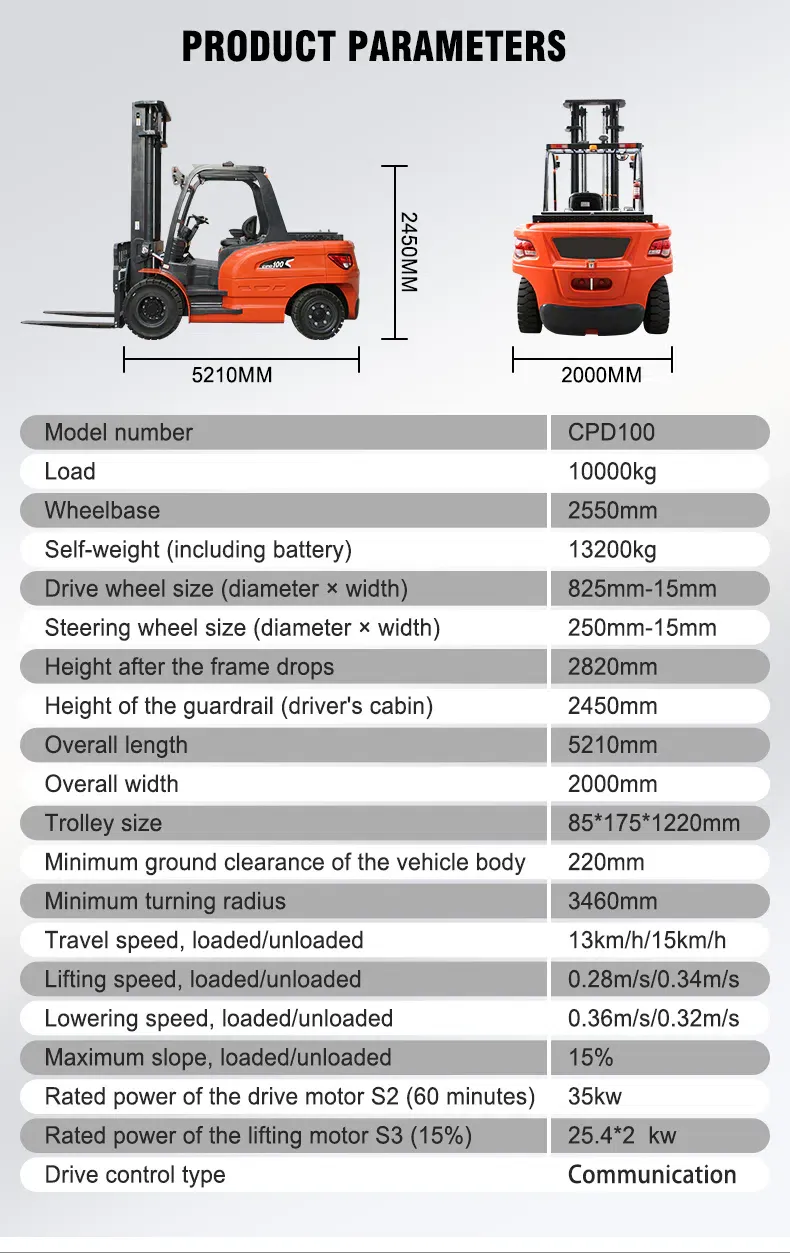

Parameters
| Model number | CPD100 |
| Load | 10000kg |
| Wheelbase | 2550mm |
| Self-weight (including battery) | 13200kg |
| Drive wheel size (diameter × width) | 825mm-15mm |
| Steering wheel size (diameter × width) | 250mm-15mm |
| Height after the frame drops | 2820mm |
| Height of the guardrail (driver's cabin) | 2450mm |
| Overall length | 5210mm |
| Overall width | 2000mm |
| Trolley size | 851751220mm |
| Minimum ground clearance of the vehicle body | 220mm |
| Minimum turning radius | 3460mm |
| Travel speed, loaded/unloaded | 13km/h/15km/h |
| Lifting speed, loaded/unloaded | 0.28m/s/0.34m/s |
| Lowering speed, loaded/unloaded | 0.36m/s/0.32m/s |
| Maximum slope, loaded/unloaded | 15% |
| Rated power of the drive motor S2 (60 minutes) | 35kw |
| Rated power of the lifting motor S3 (15%) | 25.4*2 kw |
| Drive control type | Communication |
