HTDL06 Wheel Loader Description

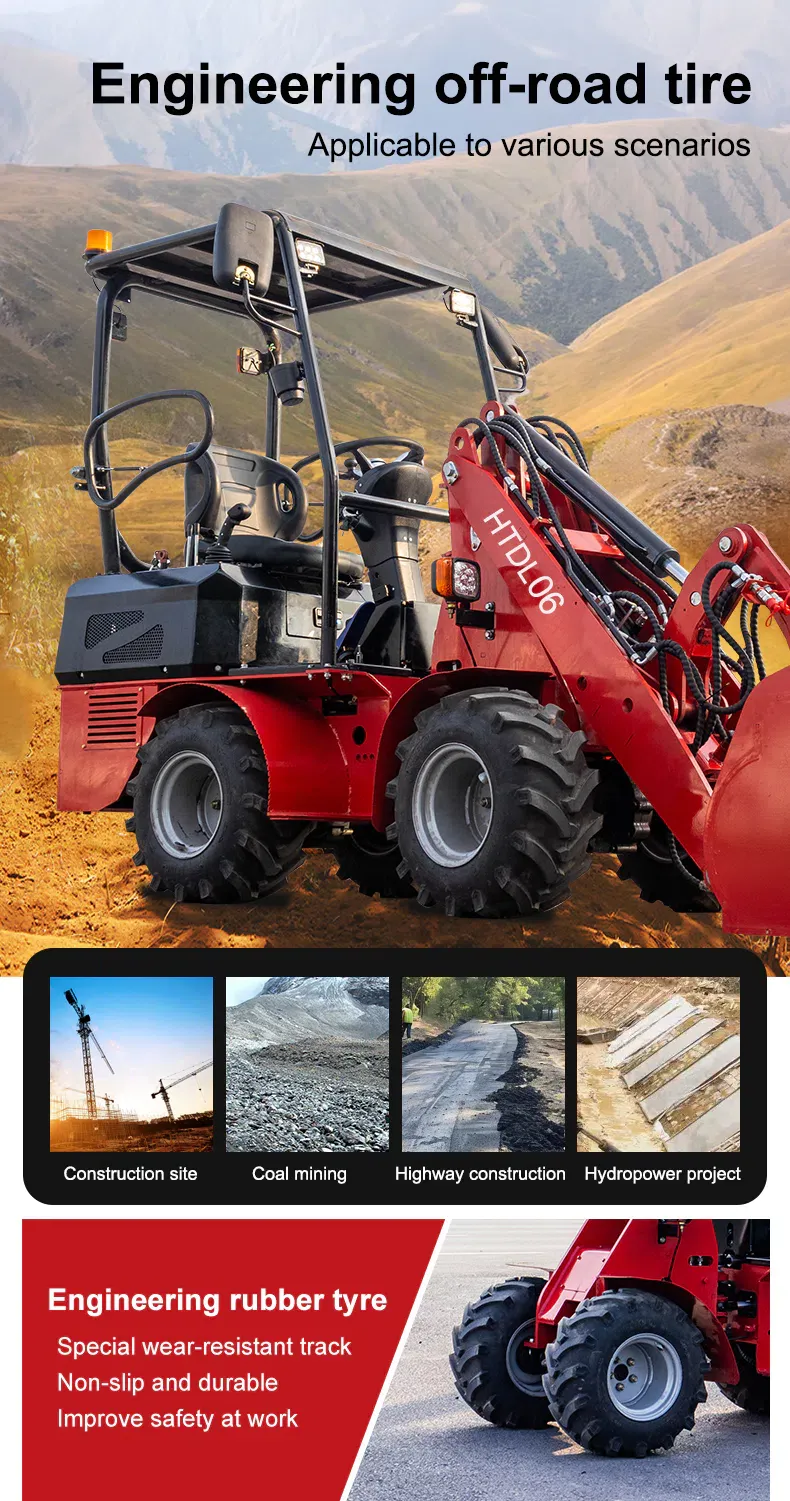

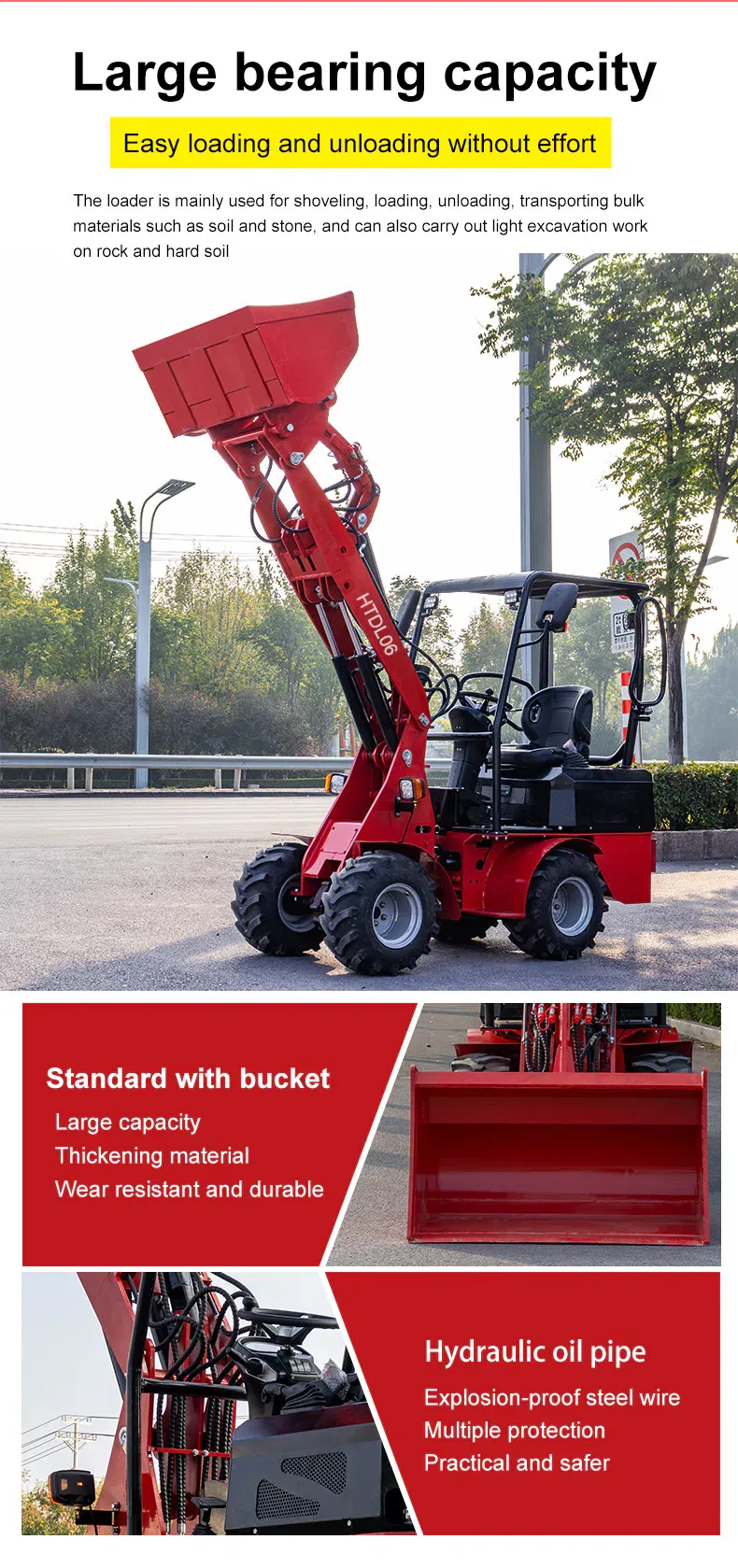

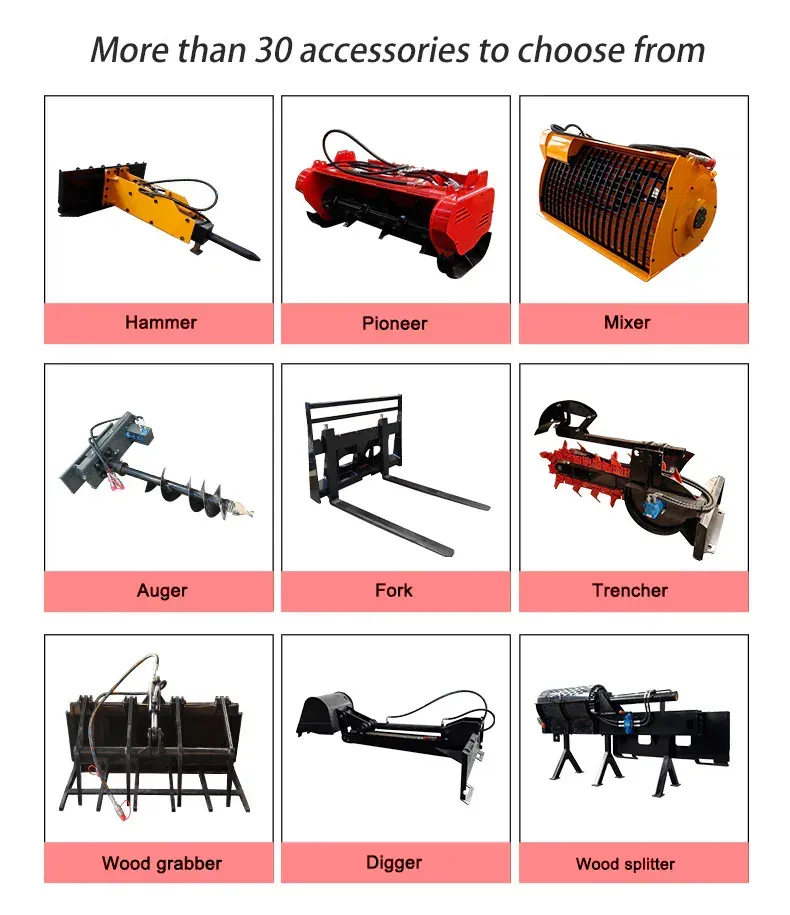

The HTDL06 Wheel Loader is a compact yet powerful multi-functional machine designed to handle a wide range of tasks with efficiency and ease. Supporting customized specifications and a variety of attachment tools, it can perform shoveling, loading, unloading, transporting, and even light excavation work. With a 0.4–0.6m³ bucket capacity and 600kg rated load, it delivers strong performance while maintaining smooth and effortless operation. Built with thickened, wear-resistant materials, explosion-proof hydraulic oil pipes, and a reinforced hydraulic system, it ensures durability and safety in demanding environments. Equipped with engineering off-road tires or optional tracks, the HTDL06 adapts easily to construction sites, mining areas, highway projects, and more, offering stable performance, flexible handling, and high working efficiency.
HTDL06 Wheel Loader Parameter
| Parameter | Specification |
|---|---|
| Length × Width × Height | 3820 × 1170 × 2250 mm |
| Minimum Ground Clearance | 95 mm |

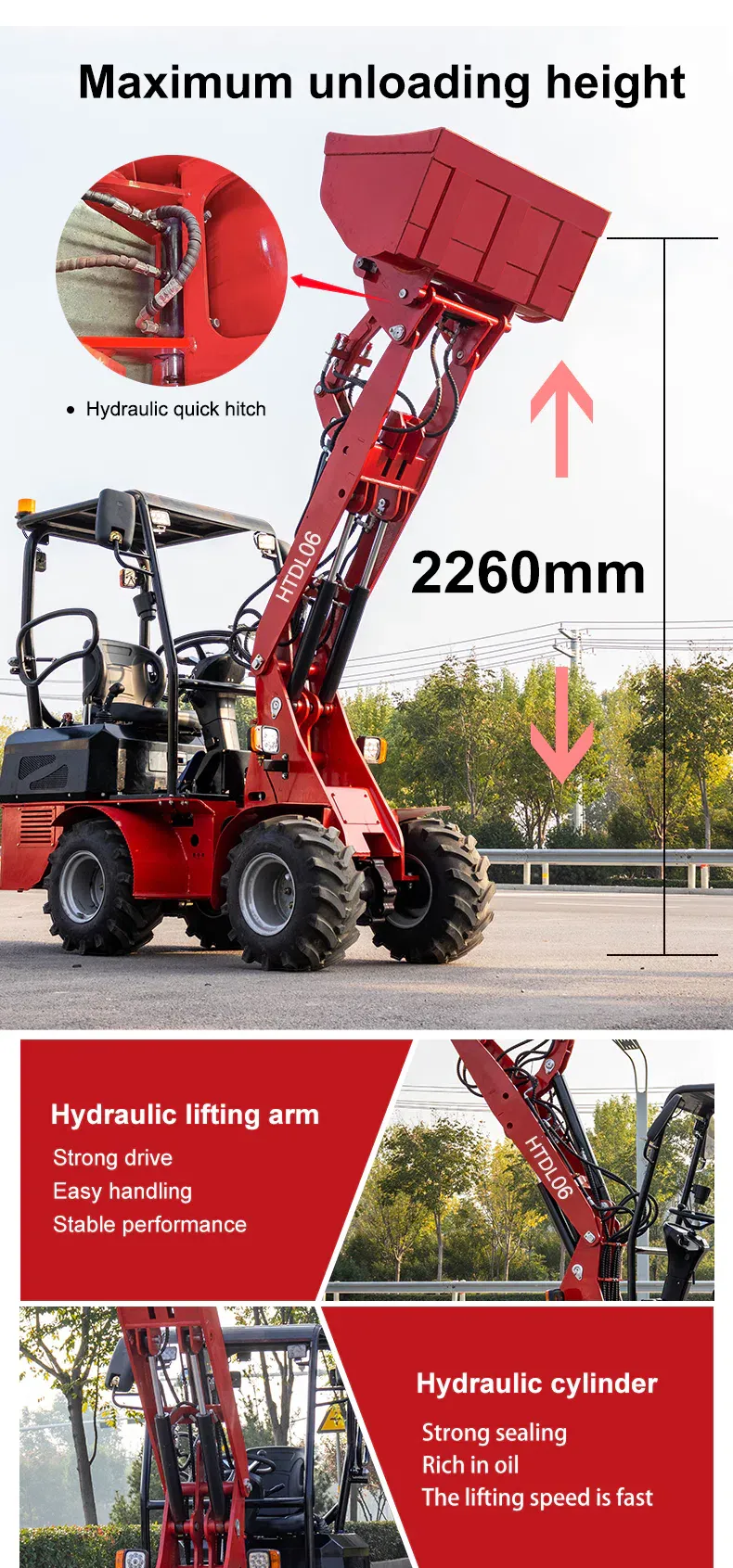

| Maximum Unloading Height | 2260 mm |
| Unloading Distance | 1100 mm |
| Unloading Angle | 23° |
| Steering Angle | 35° |
| Horizontal Pass Radius (Outside Bucket) | 2880 mm |
| Minimum Turning Radius | 2540 mm |
| Operating Weight | 2000 kg |
| Bucket Capacity | 0.4 – 0.6 m³ |
| Rated Load | 600 kg |
| Max Tractive Effort | 7.5 kN |
| Travel Speed | 0 – 10 km/h |
| Engine Model | Kubota D1105 |
| Engine Type | Vertical, water-cooled, 4-cycle diesel |
| Number of Cylinders | 3-cylinder |
| Rated Power | 18.2 kW |
| Rated Speed | 3000 r/min |
| Fuel Tank | 25 L |
| Hydraulic Oil | 50 L |
| Engine Oil | 5 L |
| Drive Axle | 3 L |
| Brake System | 3 L |

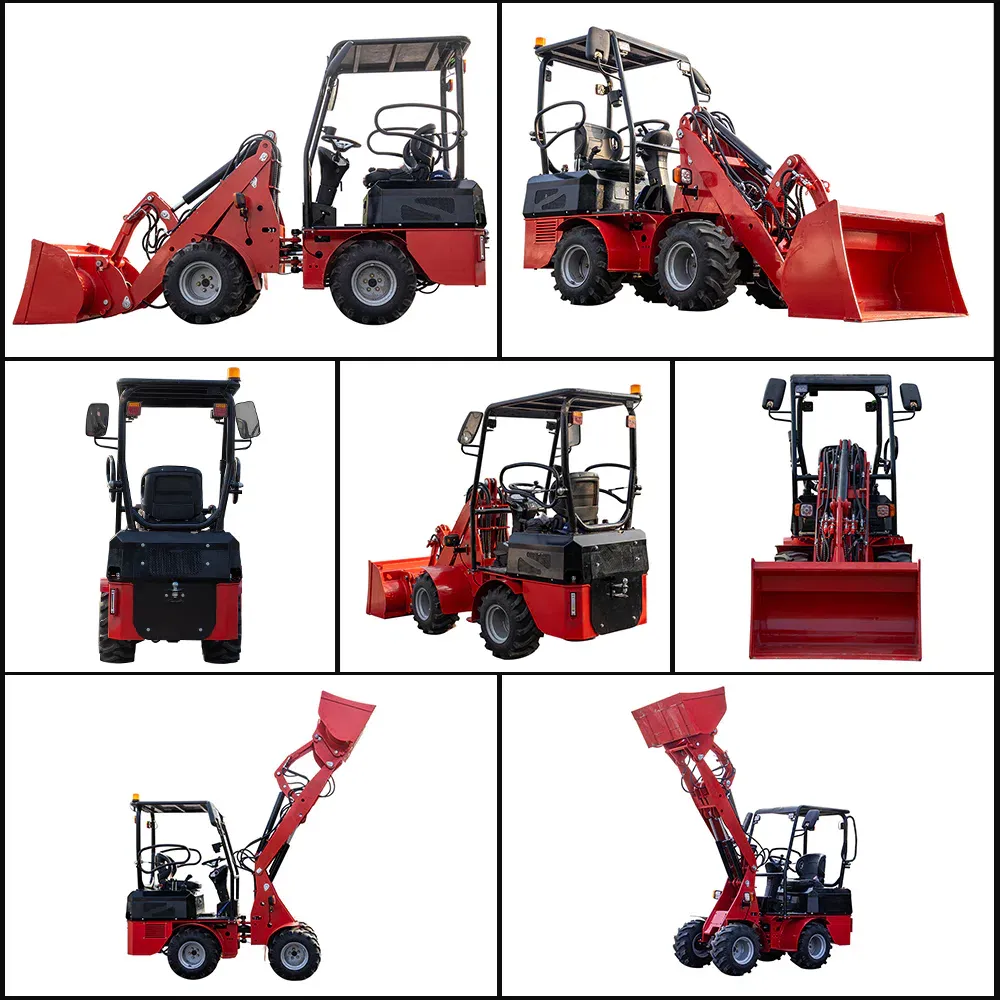

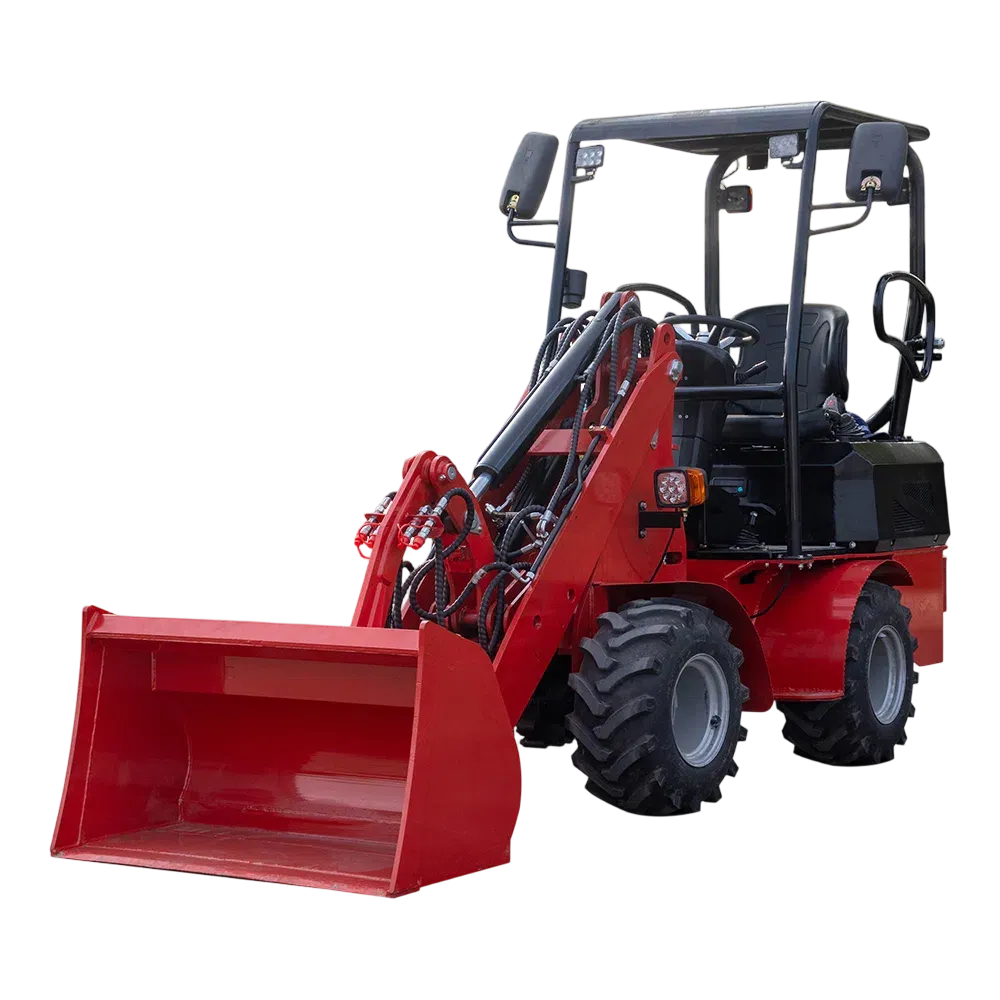

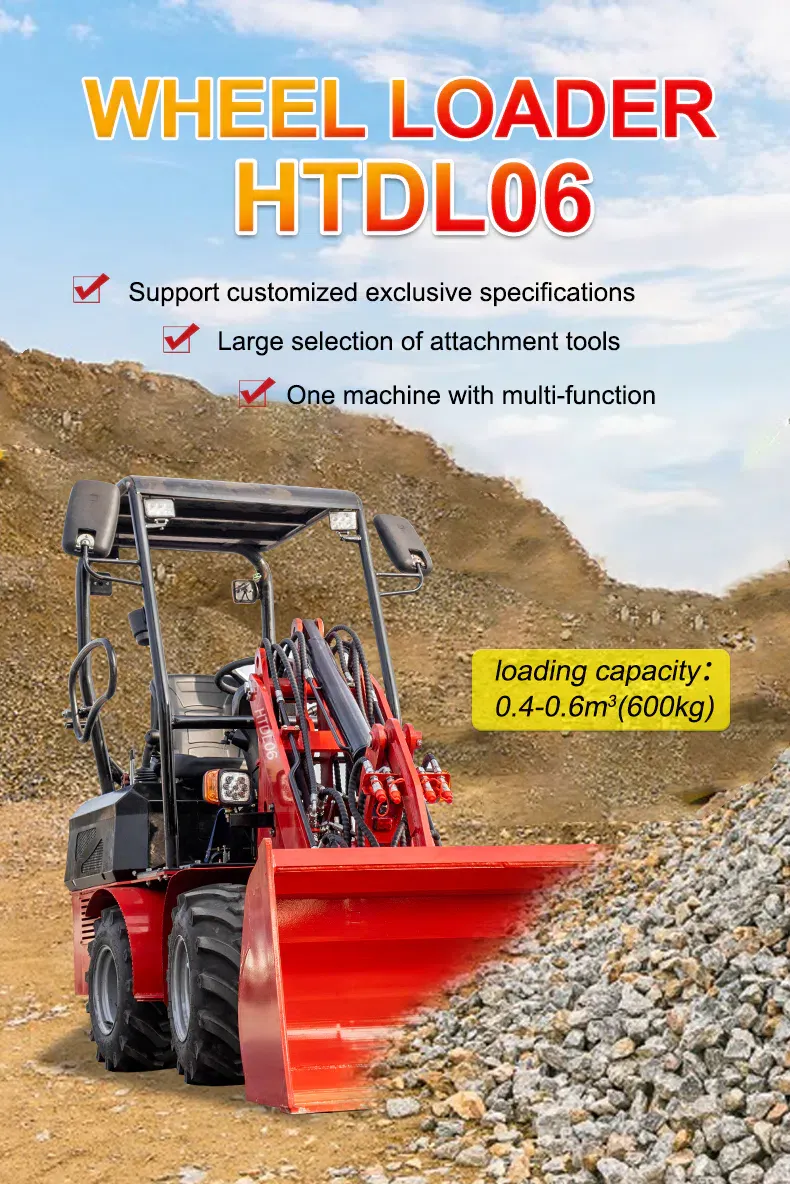

HTDL06 Wheel Loader Images
