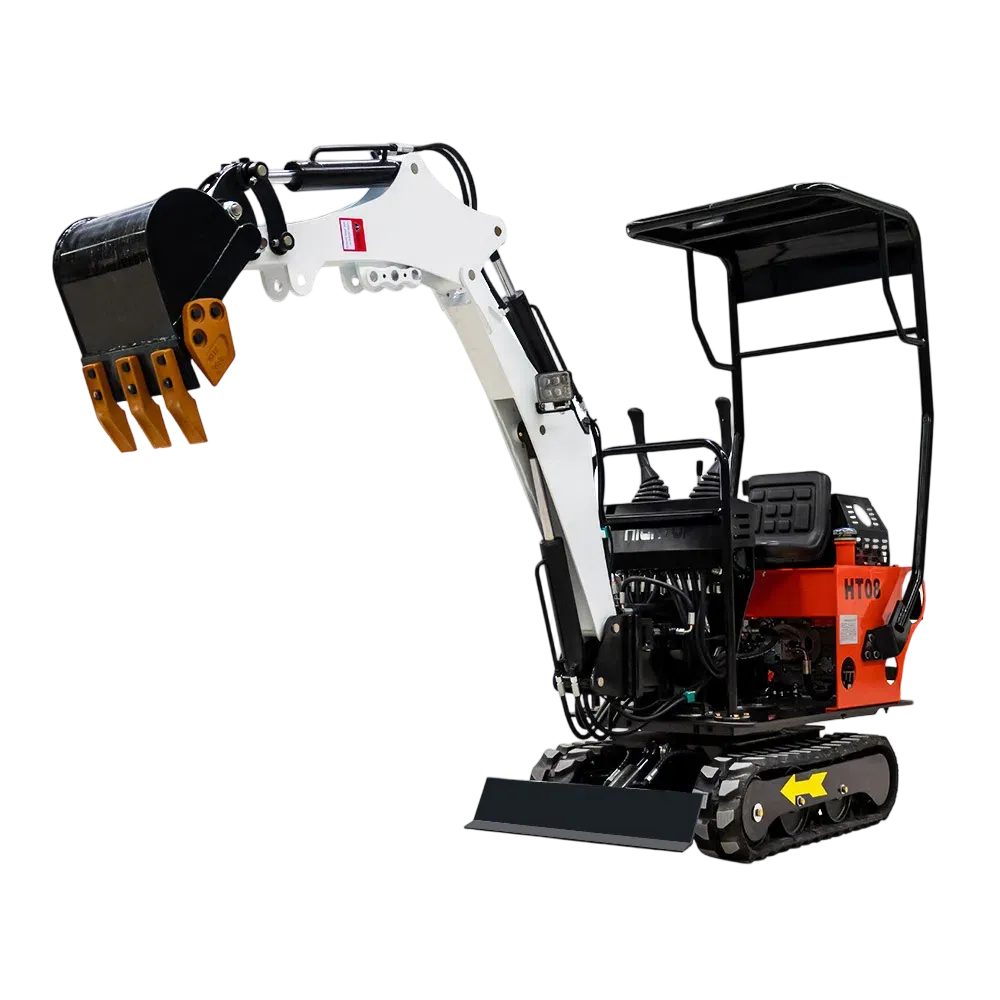

HT08 0.8T Mini Excavator Description
The HT08 0.8T Mini Excavator is a compact and efficient micro excavator designed for small-scale construction and confined spaces, featuring a reinforced boom structure, integrated high-quality cylinder for enhanced durability, and finely processed components with advanced surface treatment to ensure reliable performance and long service life.
HT08 0.8T Mini Excavator Parameter
| Performance Parameter | |
| Rated power | 12HP |
| Bucket Capacity | 0.025 m3 |
| Engine Model | changchai 192 |
| Weight | 650 kg |
| Max. digging force | 7.5KN |
| Pump form | Single gear pump |
| Set working pressure | 14Mpa |
| Swing speed | 12 rpm |
| Travel speed | 2.2Km/h |
| Gradeability | 30° |
| Ground pressure | 19Kpa |
| Working Range | |
| Max. digging distance | 2450mm |
| Max. digging depth | 1200mm |
| Max. digging height | 2350mm |
| Max. dumping height | 1600mm |
| Min. Swing radius | 1100mm |
| Max. Upgrade height of bulldozer blade | 120mm |
| Max. Digging depth of bulldozer blade | 200mm |
| Dimensions | |
| Total width | 720-780mm |
| Total height | 1300mm |
| Total length | 2430mm |
| Min. ground clearance | 80mm |
| Track ground length | 1140mm |
| Track width | 150mm |

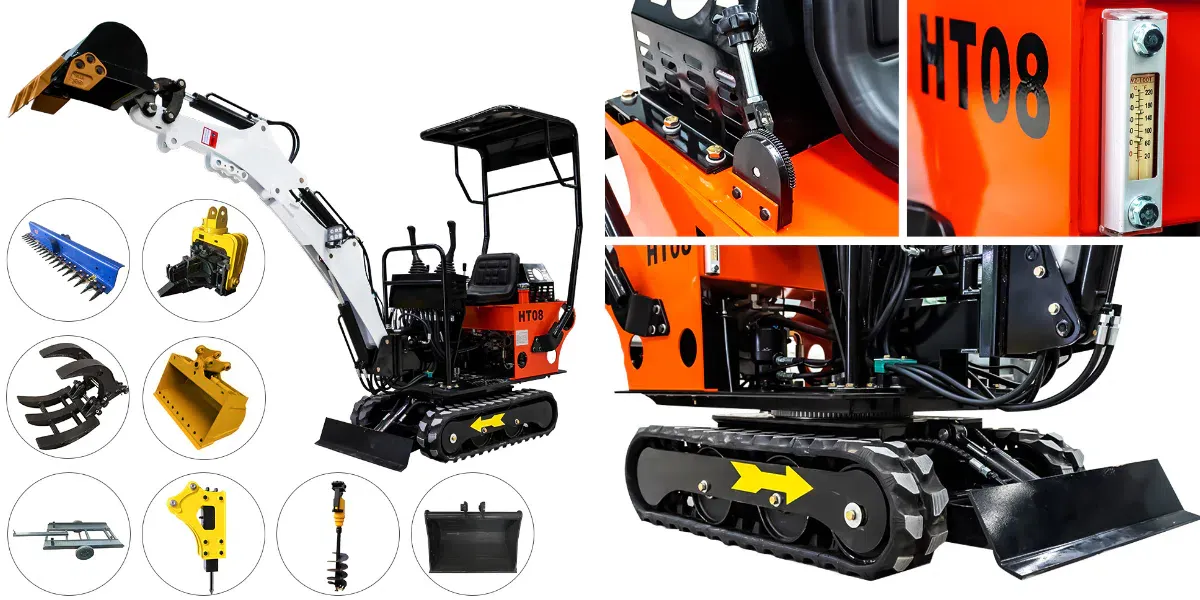

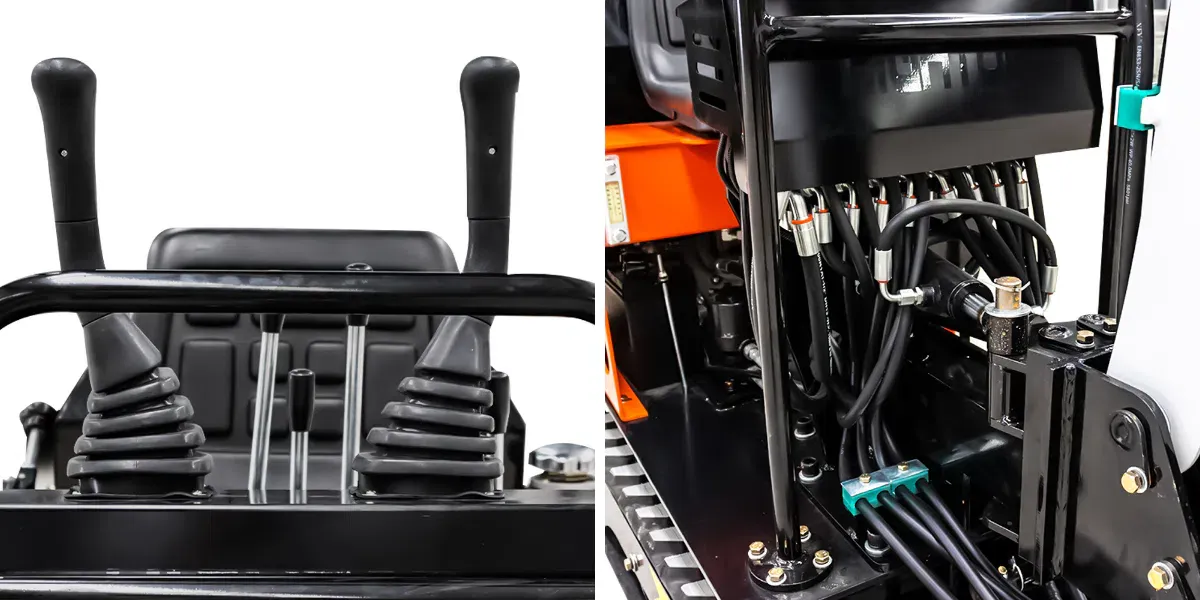

HT08 0.8T Mini Excavator Images
