HT-10D 1T Mini Excavator Introduction
Dynamical System
High quality Yanmar Engine / Kubota Engine / Briggs & Stratton Engine/Changchai / Koop engine can ensure the reliability of the machine under bad working conditions. Come with red flexible coupling that acts as a shock absorber. If the engine jumps or the different shafts act, this will compensate.
Oil Supply System
lubricating oil pressure alarm system for protect the machine, it will be alarm automatically if no lubricating oil.
▲ The hydraulic tank breathing valve has a pressure compensating valve and air filtering function. The other manufacturers' machines are only one cover, no pressure.
▲ The entrance of the hydraulic oil tank is equipped with magnets to prevent tiny objects such as rust from entering the hydraulic oil tank。
Cooling System
Built-in sealed exhaust fan and good cooling system ensure the machine does not heat up and extend the service life
Running System
Travel motor come with three hose, one is the unloading pipe, prevents the internal pressure of the motor from being too high, and the internal high-temperature oil will be discharged in the unloading pipe to improve the service life of the traveling motor.
Stable Equilibrium System
ISO TOPS/ROPS TEST analysis system is used in the 4-leg driving shed, which is safe and reliable with
high stability. New Cast iron counter weight to ensure more balanced digging force.
EPA/CE,ISO certificate Optional: Boom swing Color can choose Red, Yellow, Blue, accept customized.
HT-10D 1T Mini Excavator Parameter
| Model | HT-10D |
| Weight | 1000kg |
| Digging bucket capacity | 0.025cbm/120kg |
| Bucket width | 380mm |
| Engine |
Koop Engine 192F
|
| Optional Engine | Briggs & Stratton Engine Yanmar Engine |
| Bore stroke | Single cylinder, fan cool |
| Rated power |
7kw/3000r/min
|
| Main pump | G5-6 |
| Displacement | 6.8ml/r |
| Swing motor | SANYANG (BMRS 250) |
| Traveling motor | SANYANG (BMT-245) |
| Travel speed | 1.5km/h |
| Main Demensions | |
| Overall dimension( LxWxH) | 2775x 930 x 2219 mm |
| Wheelbase | 910 mm |
| Total length of track | 1230mm |
| Platform ground clearance | 380mm |
| Platform back turming radius | 784 mm |
| Chassis width | 896 mm |
| Track width | 180 mm |
| Chassis ground clearance | 132 mm |
| Track height | 320 mm |
| Operating Range | |
| Max. Digging depth | 1650 mm |
| Max. Vertical digging depth | 1375 mm |
| Max. Digging height | 2610 mm |
| Max. Dumping height | 1850 mm |
| Max. Digging radius on ground | 2850 mm |
| Min. Rotation radius | 1330 mm |
| Max. Upgrade height of bulldozer blade | 345 mm |
| Max. Digging depth of blldozer blade | 255 mm |

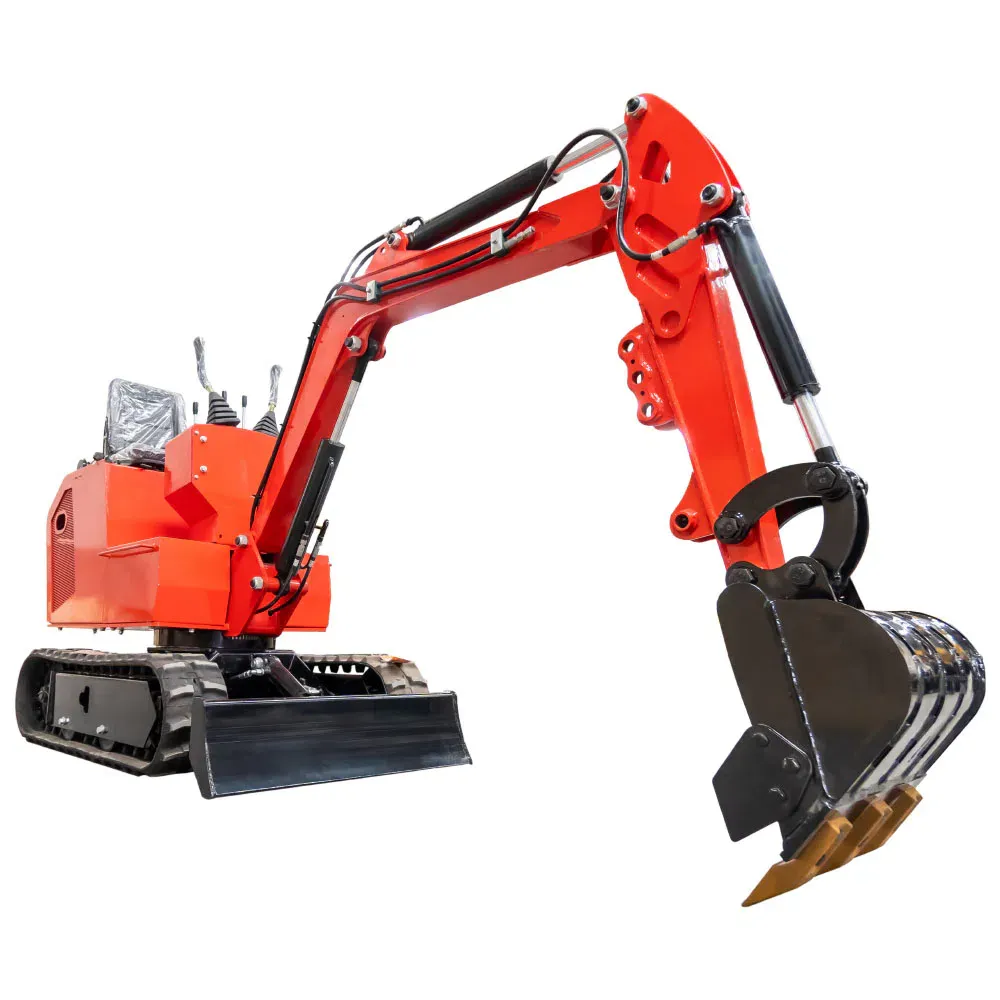

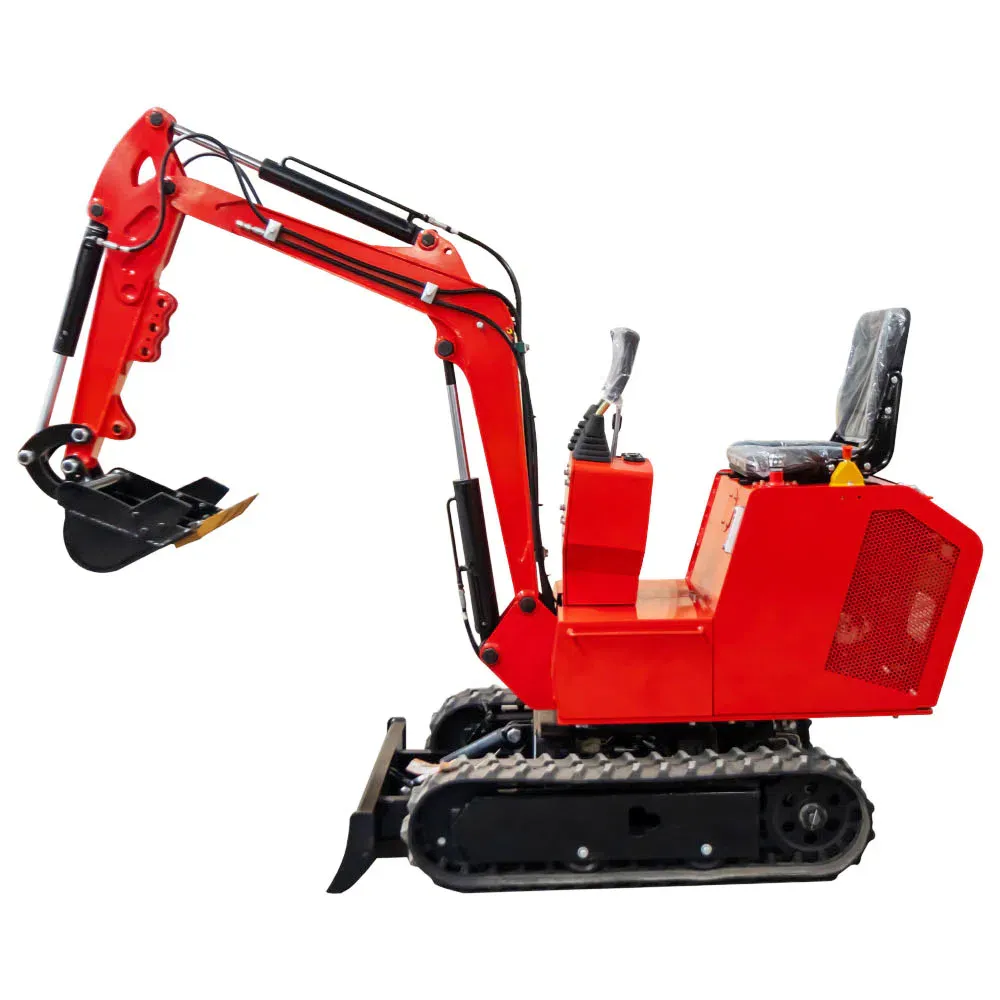

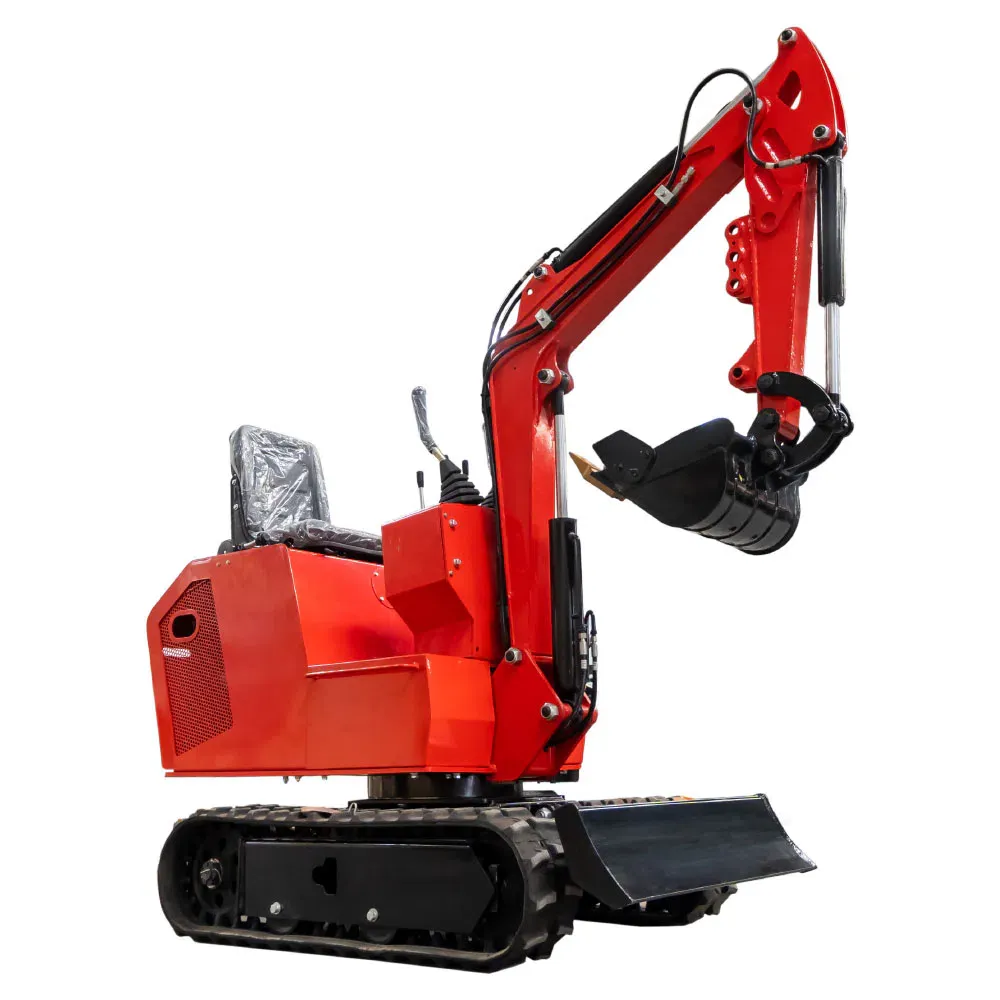

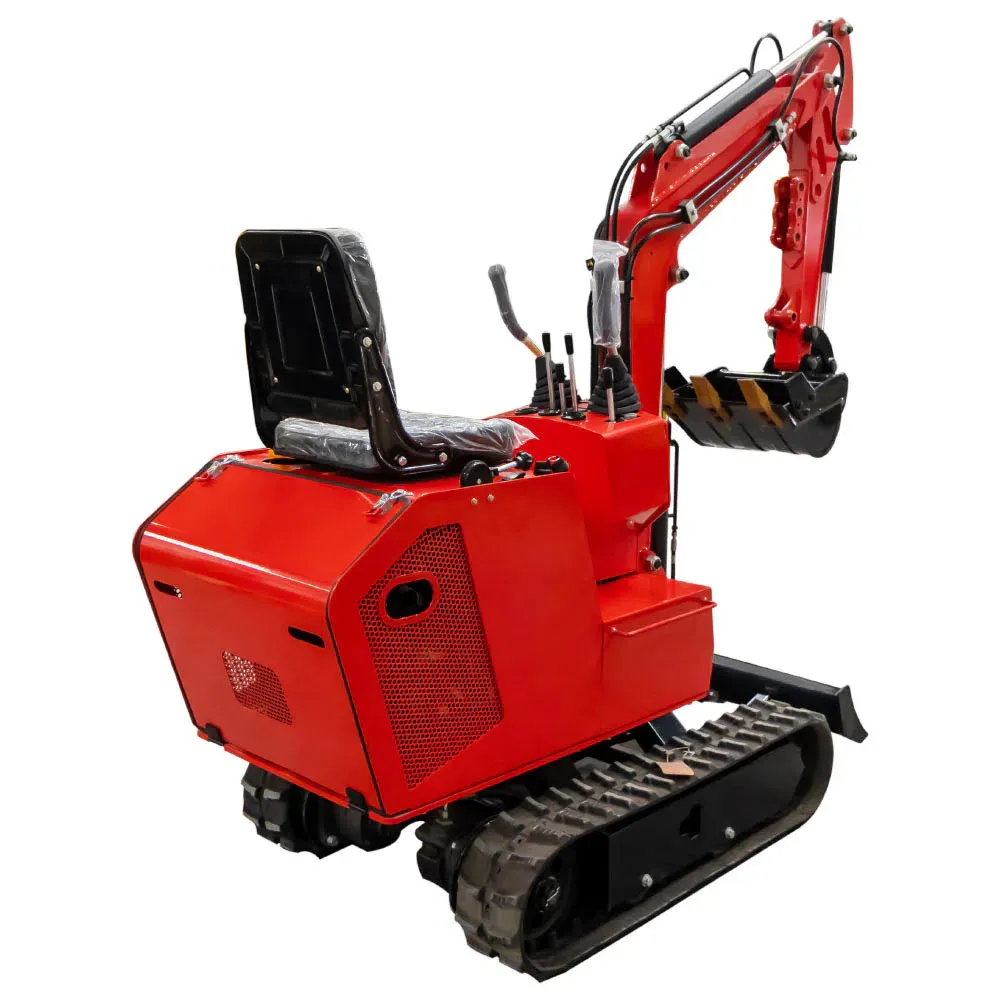

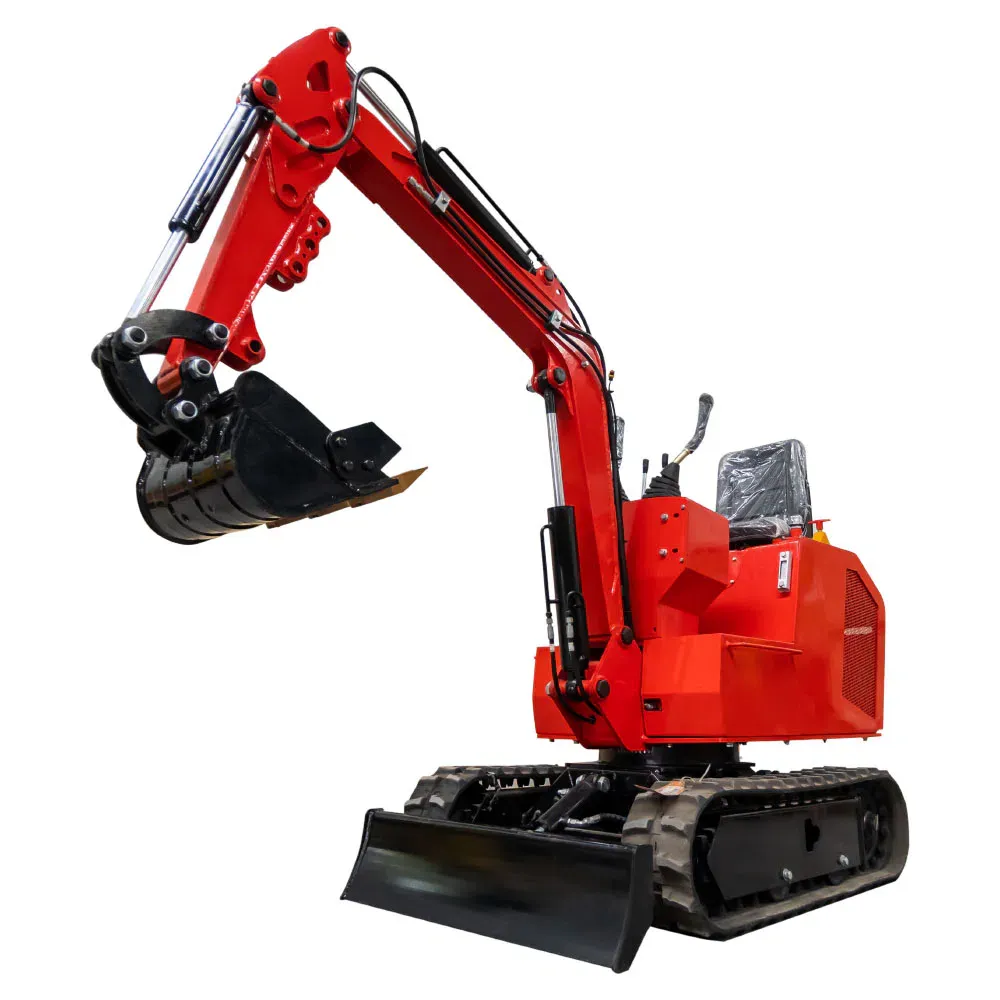

HT-10D 1T Mini Excavator Images
