HT10B | 1 Ton Mini Excavator

Name: 1 Ton Mini Excavator | HT10B Compact Tracked Micro Digger For Farm & Landscaping
Brand: Shandong Hightop Group
Availability: InStock

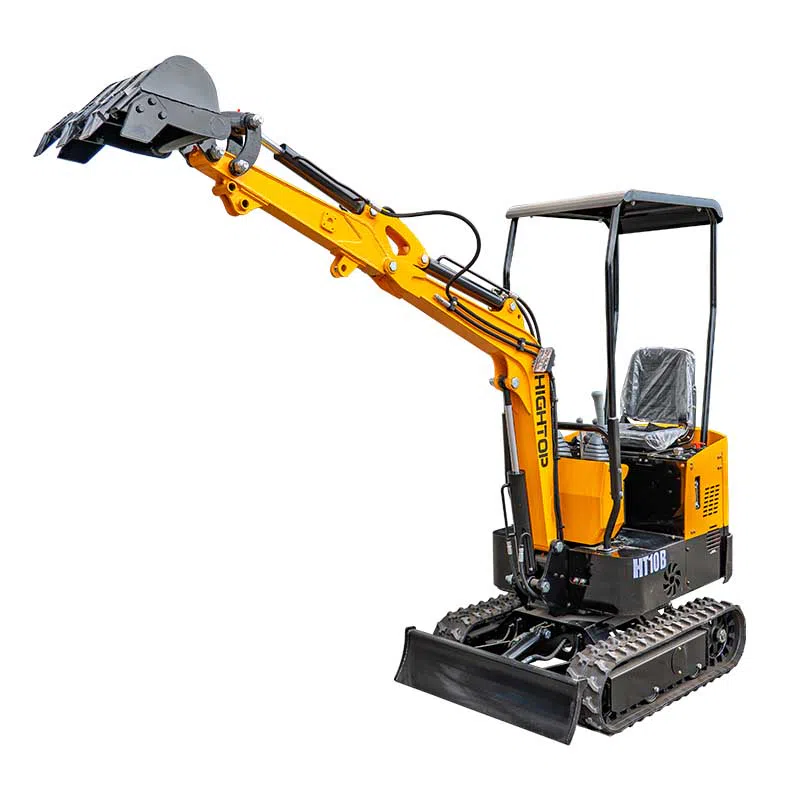

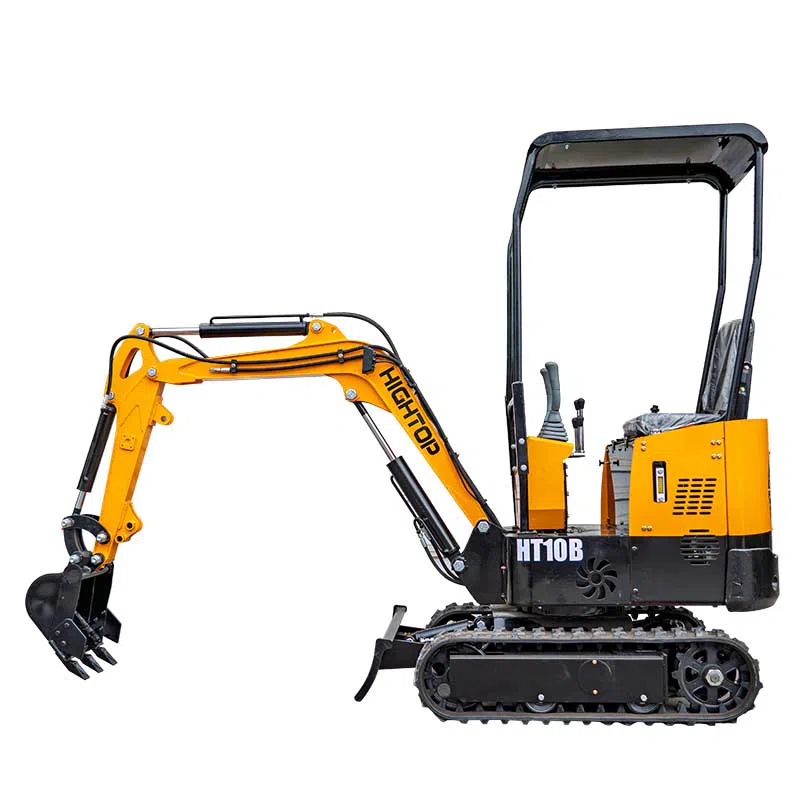

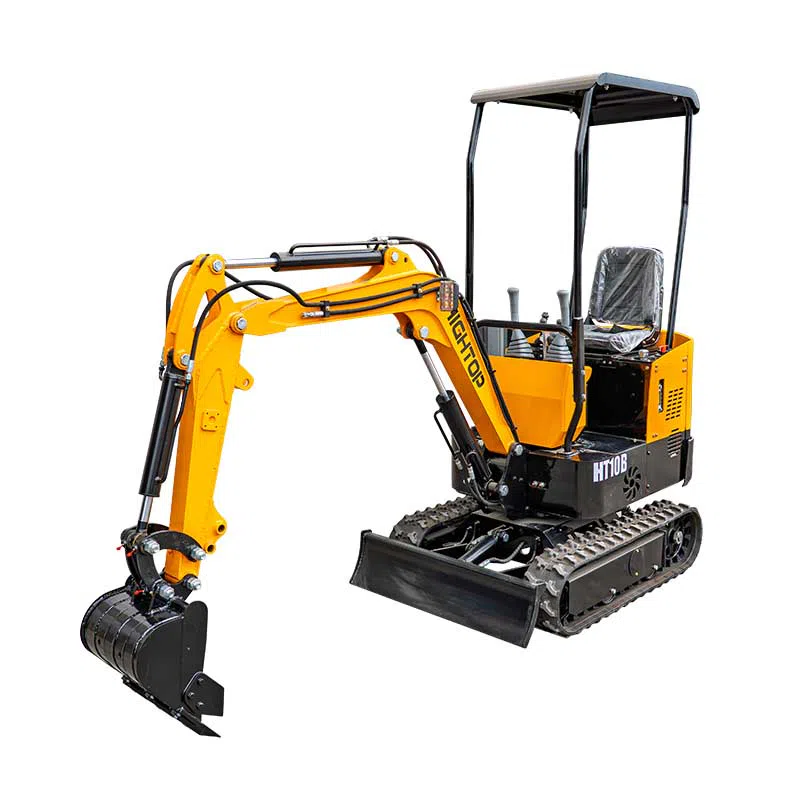

HT10B 1 Ton Mini Excavator – Compact Tracked Micro Digger

The HT10B mini excavator is a lightweight 1-ton class tracked digger built for tight-space operation. With compact overall dimensions, flexible maneuverability and powerful digging performance, this crawler mini excavator is widely adopted in landscaping, farm maintenance, indoor demolition, utility repair and small construction jobs.

Two cabin choices are available: open canopy version and fully enclosed cab version. The canopy model features an open design for simple operation and ventilation; the cab version comes with integrated steel frame, comfortable seating and full protection for year-round working.

This small crawler excavator supports multiple custom services. You can customize machine color following RAL color codes, and add your own logo on the body. A wide range of optional attachments can be fitted to realize multi-function work, including digging buckets, auger, breaker hammer, rake, thumb clamp and more.

Equipped with wear-resistant rubber tracks, the HT10B mini digger protects lawns, pavement and tiles while delivering stable traction on uneven ground. It can climb slopes up to 30°, adapting to various complex working terrains. The ergonomic operator seat and simple control levers reduce fatigue during long working hours, friendly even for new operators.

Main Technical Specifications

Item	Parameter
Operating Weight	1000 kg
Bucket Capacity	0.025 m³
Max Digging Height	2605 mm
Max Dumping Height	1750 mm
Max Digging Depth	1415 mm
Max Digging Radius	2715 mm
Min Turning Radius	1415 mm
Max Height at Min Swing Radius	2060 mm
Transport Length	2225 mm
Overall Width	930 mm
Overall Height (Canopy)	2440 mm
Overall Height (Top of Cab)	2800 mm
Standard Track Shoe Width	180 mm
Track Gauge	750 mm
Blade Digging Depth	110 mm
Gradeability	30°

Key Features

Compact & Agile Body: Narrow width design allows easy access to narrow gateways, backyards and indoor work sites.
Dual Cabin Options: Open canopy or closed cab to match different climate and working requirements.
Power & Durability: Reliable engine provides steady power output, low fuel consumption and long service life.
Multi-Attachment Compatibility: One machine for multiple tasks, replace attachments quickly for digging, breaking, drilling, grabbing.
Customization Support: Custom body color and logo service to meet brand demands.
Rubber Crawler Tracks: Prevent damage on finished ground, suitable for garden and residential work.
