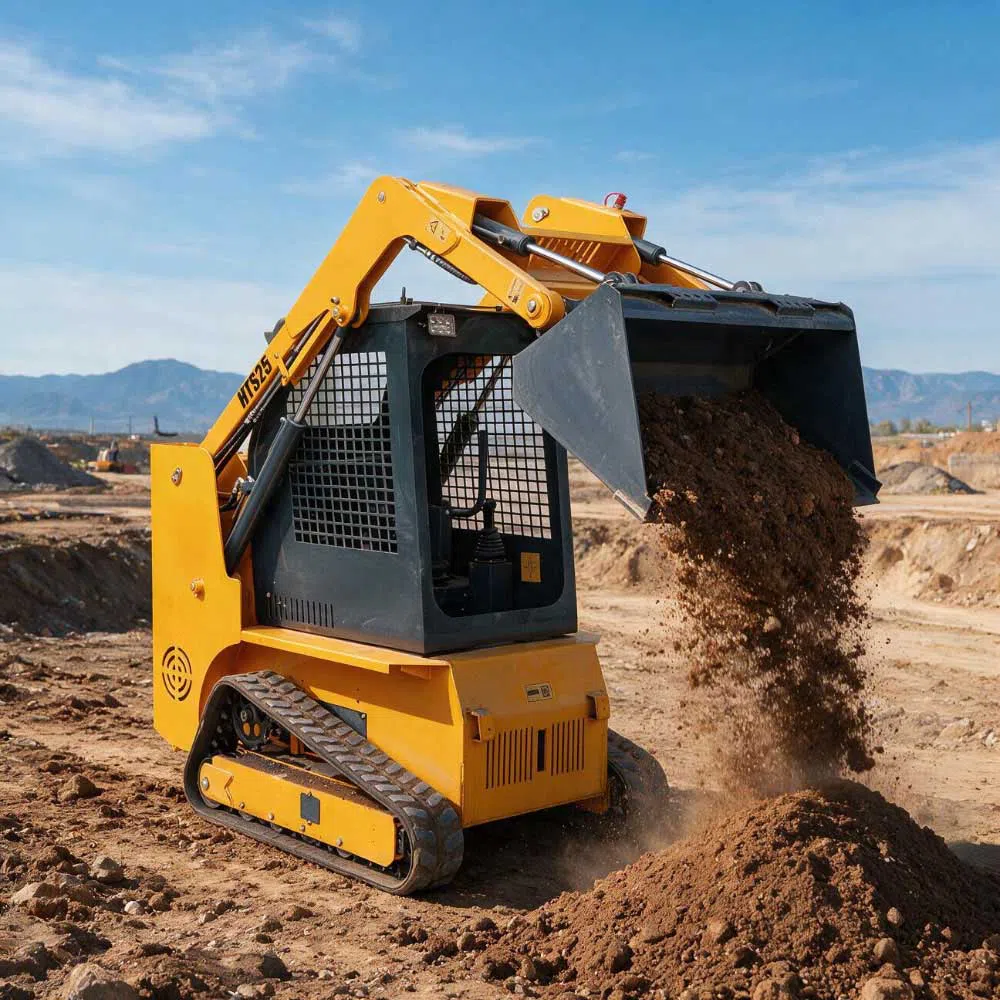

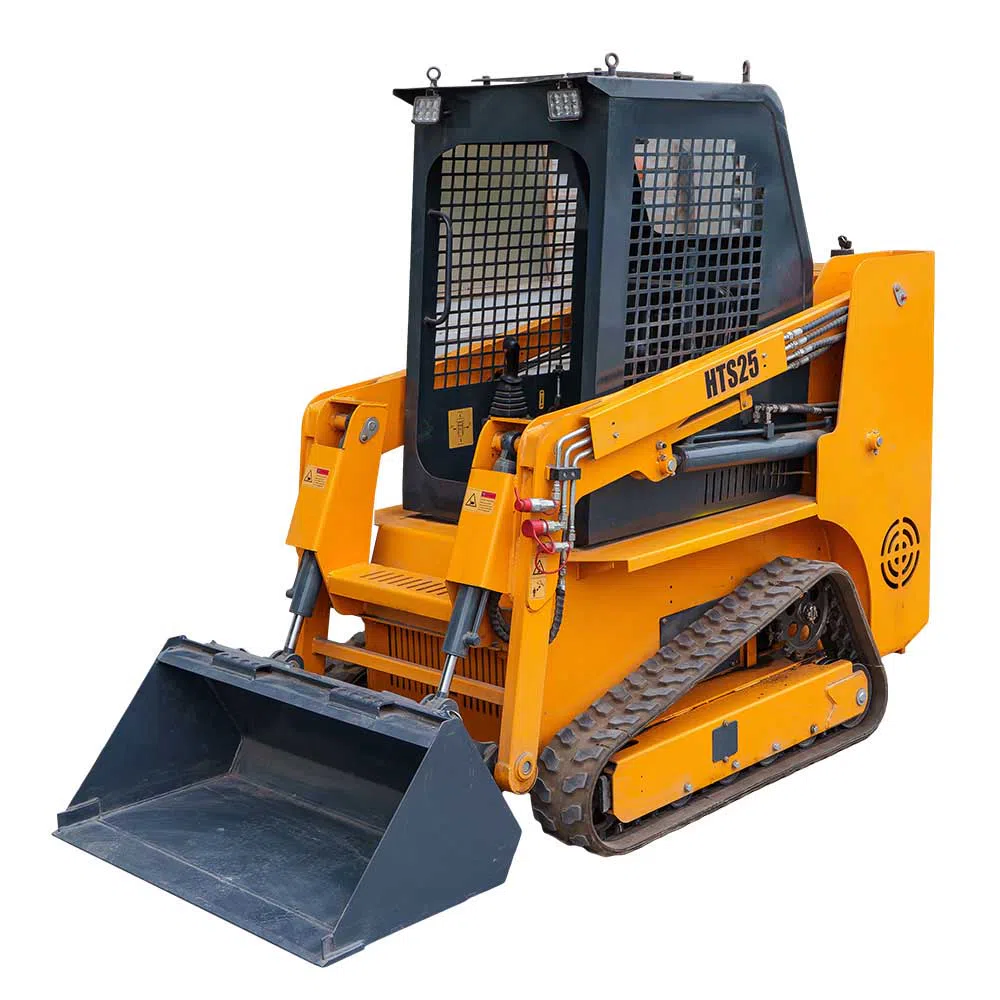

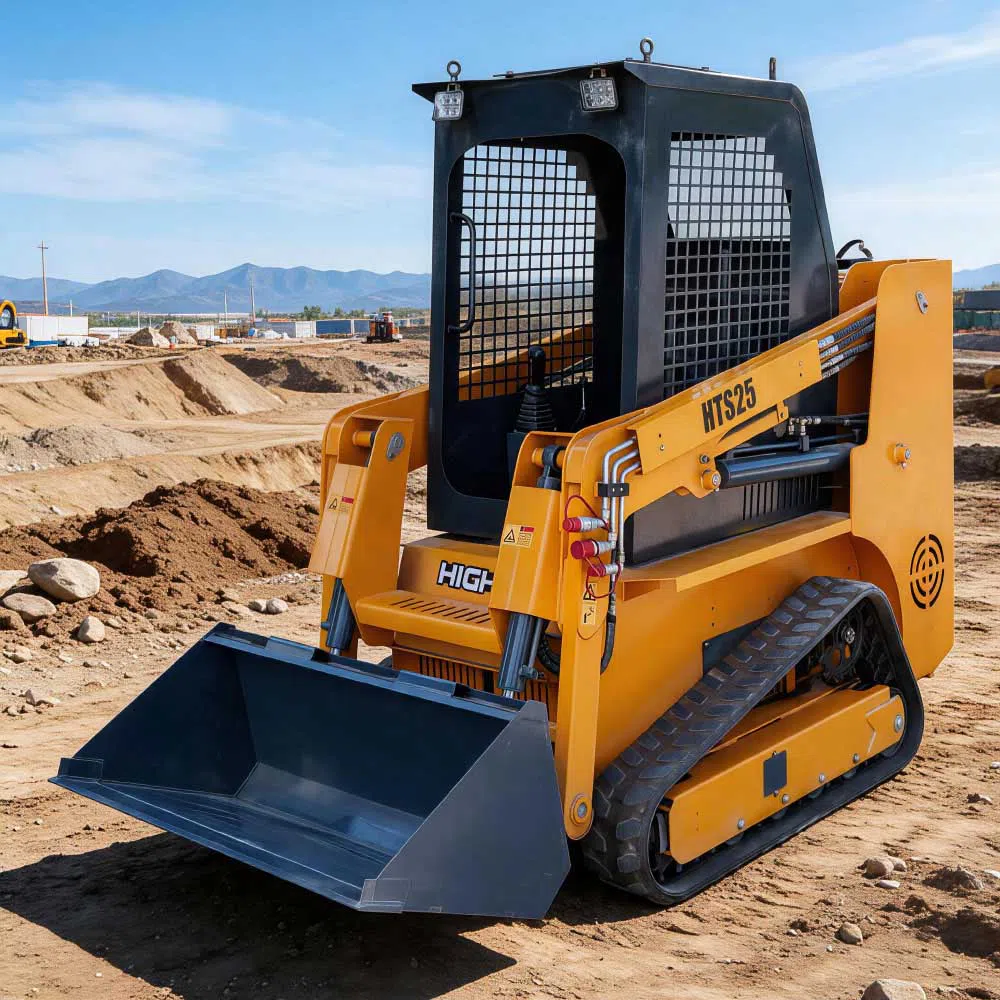

The HTS25 tracked skid steer loader is a compact crawler-type skid steer built to operate on uneven, muddy, sloped and soft ground. Thanks to the rubber track undercarriage, it delivers strong traction and low ground pressure, protecting lawns, paved surfaces and finished ground from damage. Its compact zero-turn design allows it to access narrow spaces that large construction machines cannot enter. This tracked skid steer is widely used in landscaping, site clearing, farm maintenance, muddy construction projects and hillside renovation.

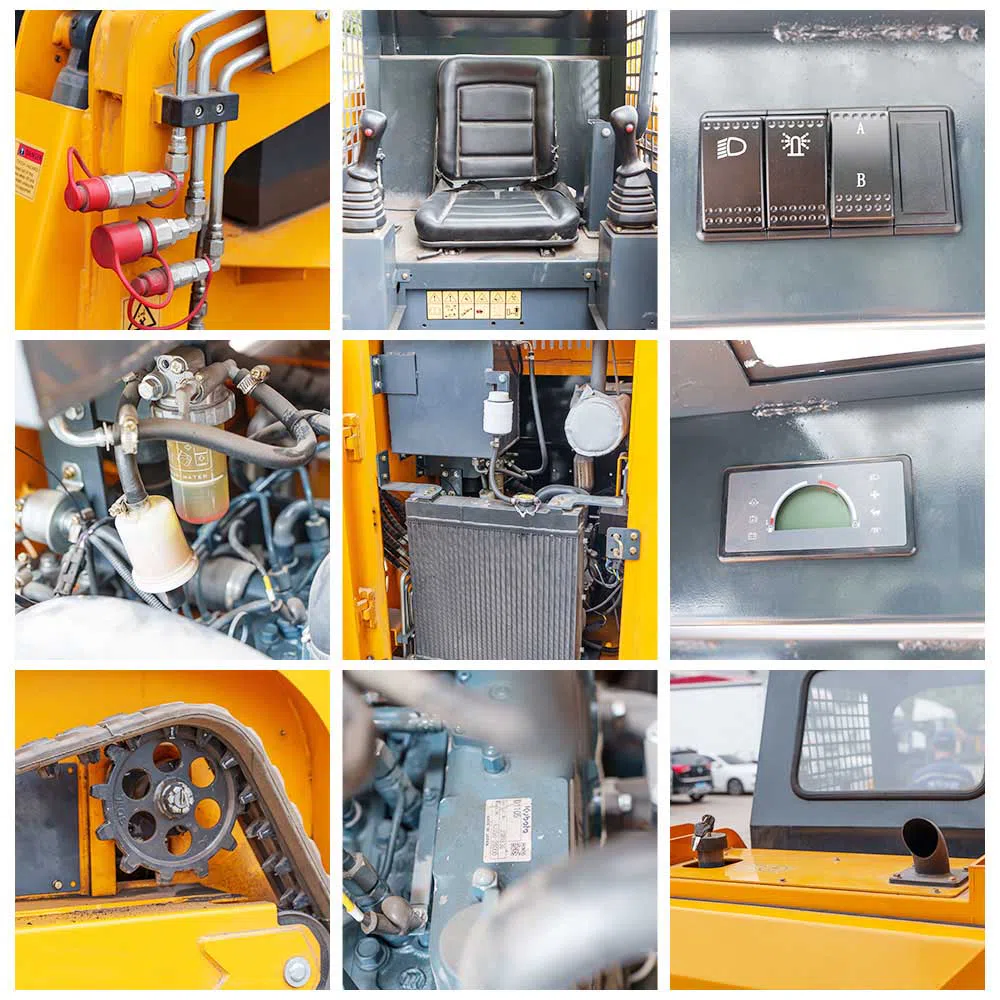

This crawler skid steer supports two reliable engine selections: Kubota D1105 and Laidong 385. Both engine options provide stable power, low noise and excellent fuel economy for long continuous working hours. It adopts high-quality hydraulic core components, paired with pilot control and multi-function electronic control system, delivering smooth, responsive and precise operation during digging, loading and attachment work.
Equipped with heavy-duty engineering rubber tracks, the HTS25 tracked skid steer has outstanding climbing ability and grip performance on mud, sand and slopes. The travel speed reaches 3 km/h, optimized for traction rather than fast transit. The ergonomic operator cab features a wide viewing area, multi-function joystick, warning lamp, horn and safety belt to guarantee operator safety. The cab can tilt backward at a large angle, granting easy access to internal components for inspection, servicing and routine maintenance.
This tracked skid steer comes with a universal quick attach system. You can rapidly swap different working attachments to expand machine functionality. Available attachments include standard digging bucket, hydraulic breaker, wood grapple, snow blower, pallet fork and dozer blade. One machine can handle many different jobs to reduce your equipment investment.
表格
| Item | Specification |
|---|---|
| Engine Option 1 | Kubota D1105 |
| Rated Power | 18.2 kW |
| Engine Option 2 | Laidong 385 |
| Rated Power | 18.5 kW |
| Fuel Tank Capacity | 23 L |
| Operating Load | 300 kg |
| Rated Flow | 36 L/min |
| Hydraulic Pressure | 160 Bar |
| Bucket Capacity | 0.20 m³ |
| Bucket Width | 1130 mm |
| Travel Speed | 3 km/h |
| Track Model | 2007245 |
| Overall Operating Height | 3380 mm |
| Height to Bucket Hinge Pin | 2610 mm |
| Dumping Height | 2130 mm |
| Dumping Reach | 510 mm |
| Track Base | 1080 mm |
| Ground Clearance | 165 mm |
