Description of HT960 Small Wheel Loader :
Baking paint process adopted on the whole machine to ensure a stronger adhesion and be colorfast.
Electrophoresis frame adopted to ensure resistant to rust.
Features of HT960 Small Wheel Loader :
Wheel loaders Can be equipped with a variety of attachments to achieve a multi-function,multi-purpose machine.
HT960 Wheel Loader Parameter
| HT960 | |
| Wheel Loader Basic Information | |
| Overall Operating Weight | 19000kg |
| L*W*H | 8360*2950*3600mm |
| Wheel base | 3260mm |
| Wheel Tread | 2250mm |
| Bucket Capacity | 3.5m³ |
| Rated Load | 6000kg |
| Max. Breakout Force | 200KN |
| Max.Dump Height | 3.16m |
| Engine Information | |
| Brand | WEICHAI |
| Model | WEICHAI WD10G240E21 |
| Type | inline,water cooled,dir.inject,fourstrokees |
| Rated Power | 175KW |
| Rated Speed | 2200r/min |
| Steering System Drive System Information | |
| Tire Size | 26.5-25 |
| Steering Angle | 38°±1 |
| Pattern of Wheel Side Moderation | Single stage planetary |
| Main Reducer | Spiral bevel gear first reduction |
| Type | 38km/h |
| Max.Travel Speed | HANGCHI ZL60 |
| Transmission Information | |
| Information | Electronic control torque converter and gearbox combination |
| Transmission | 2forward 1reverse |

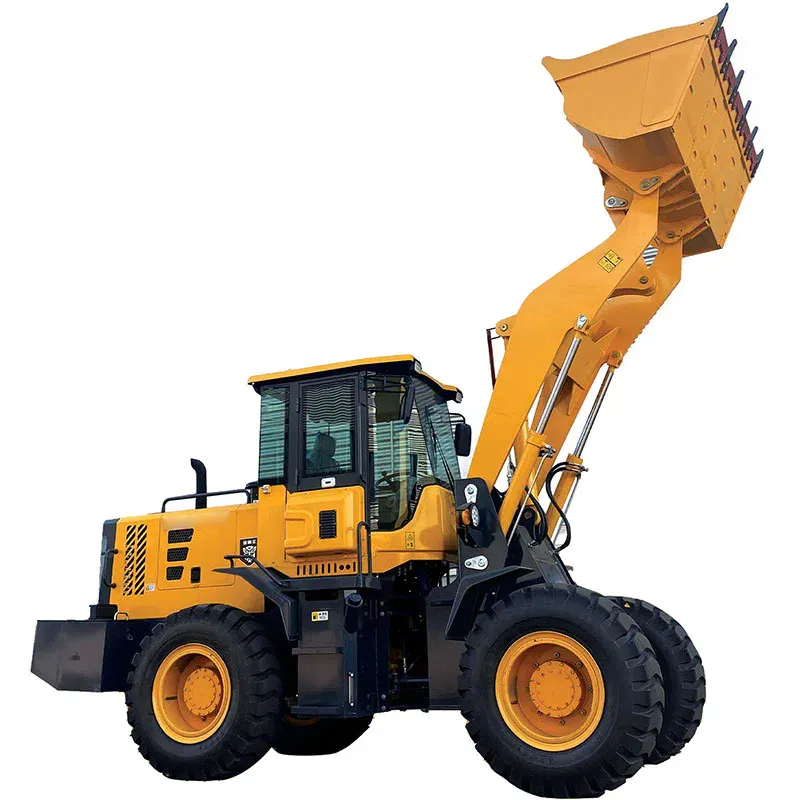

HT960 wheel loader Images
