HT35 3.5T Small Excavator Instruction

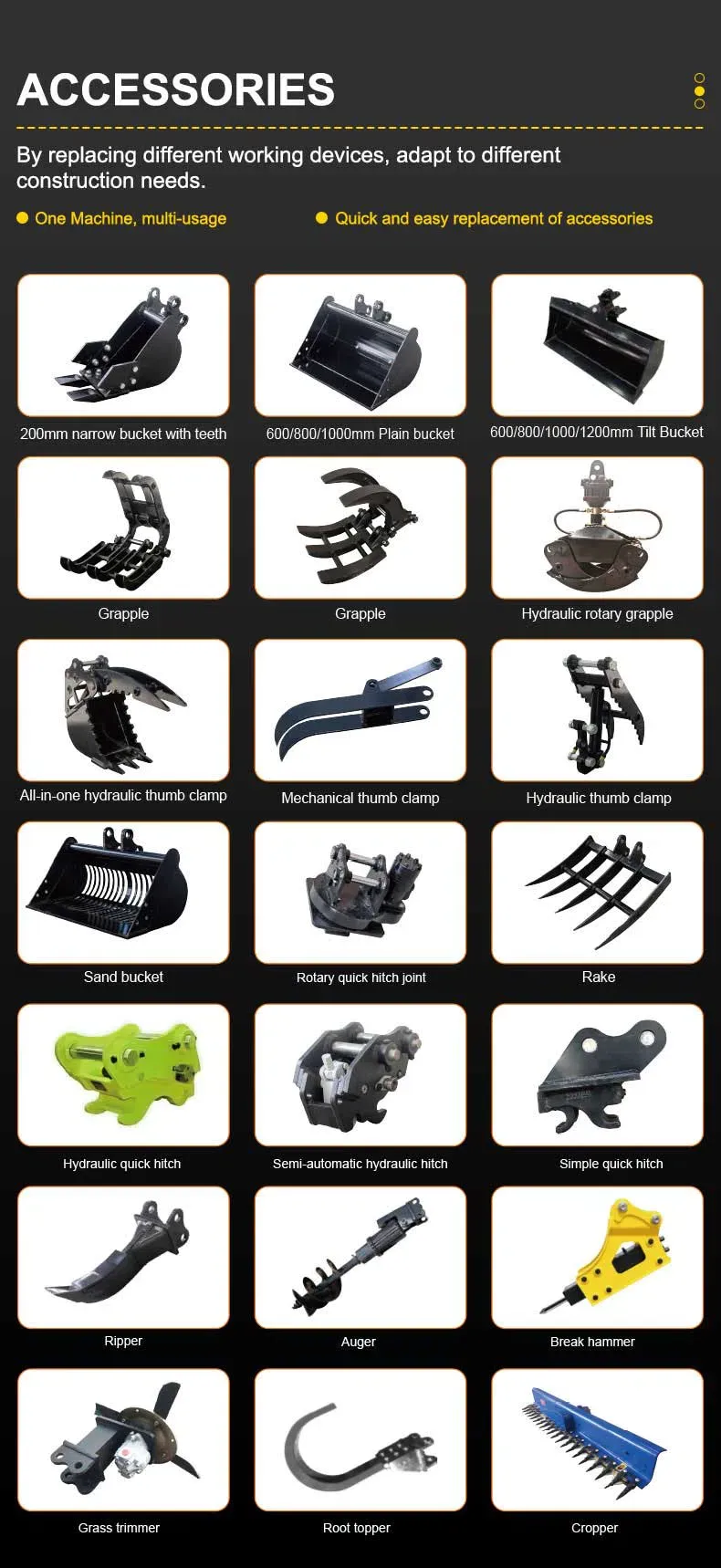

The 3.5 ton excavator have crawler type and wheel type, it's reliable and of user-friendly. With multiple functions of digging, grabbing, drilling, bull-dozing, ditch-cleaning and rock-breaking, this excavator can be widely used in various construction projects such as water supply, power supply, gas supply, telecommunication network, farmland and garden works etc.

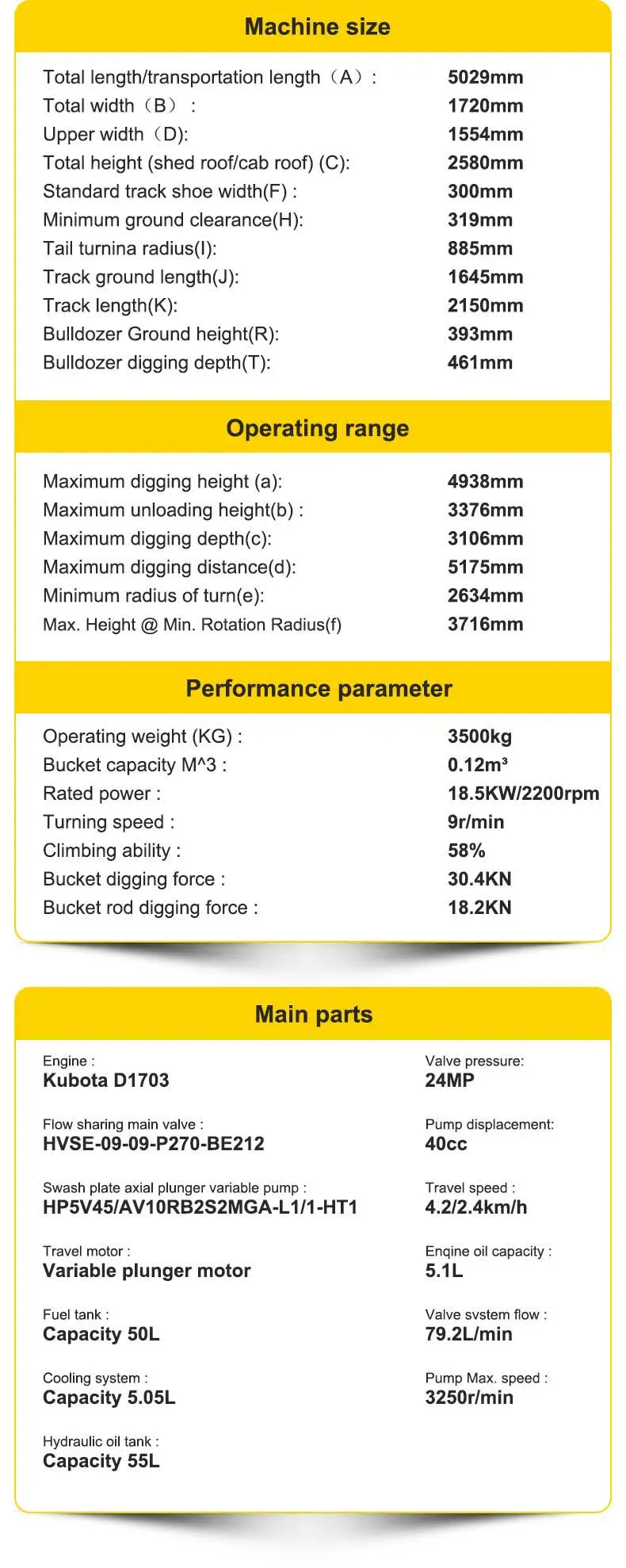

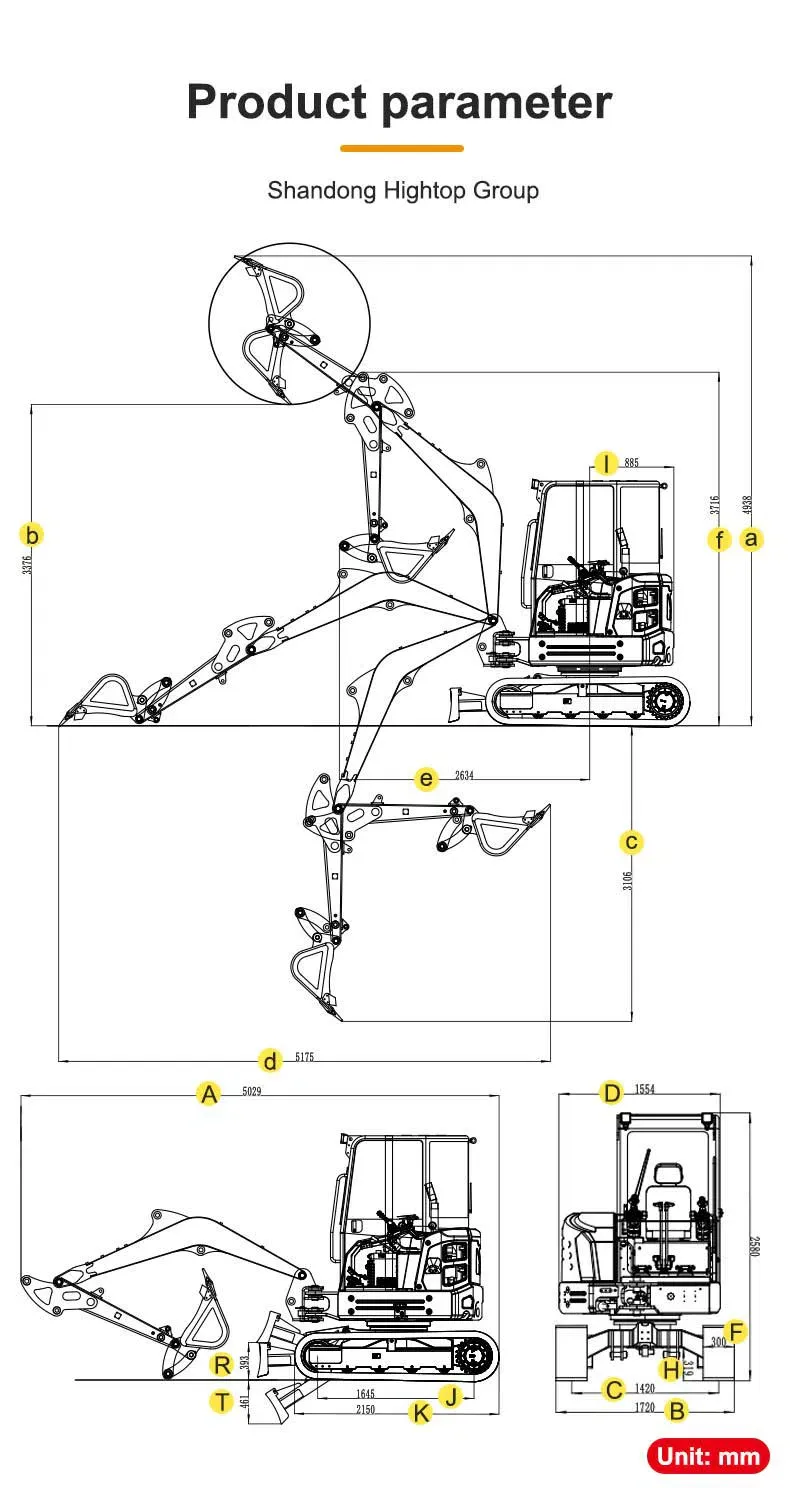

Parameter
| Machine size | |
| Total length/transportation length(A): | 5029mm |
| Total width(B) | 1720mm |
| Upper width(D): | 1554mm |
| Total height (shed roof/cab roof)(C): | 2580mm |
| Standard track shoe width(F): | 300mm |
| Minimum ground clearance(H): | 319mm |
| Tail turnina radius(l): | 885mm |
| Track ground length(J): | 1645mm |
| Track length(K): | 2150mm |
| Bulldozer Ground height(R) | 393mm |
| Bulldozer digging depth(T): | 461mm |
| Operating range | |
| Maximum digging height (a): | 4938mm |
| Maximum unloading height(b) | 3376mm |
| Maximum digging depth(c): | 3106mm |
| Maximum digging distance(d): | 5175mm |
| Minimum radius of turn(e): | 2634mm |
| Max. Height @ Min. Rotation Radius(f) | 3716mm |
| Performance parameter | |
| Operating weight (kG) | 3500kg |
| SuCKetcaoaCw | 0.12m³ |
| Rated power : | 18.5KW/2200rpm |
| Turning speed : | 9r/min |
| Climbing ability : | 58% |
| Bucket digging force : | 30.4KN |
| Bucket rod digging force : | 18.2KN |
| Main parts | |

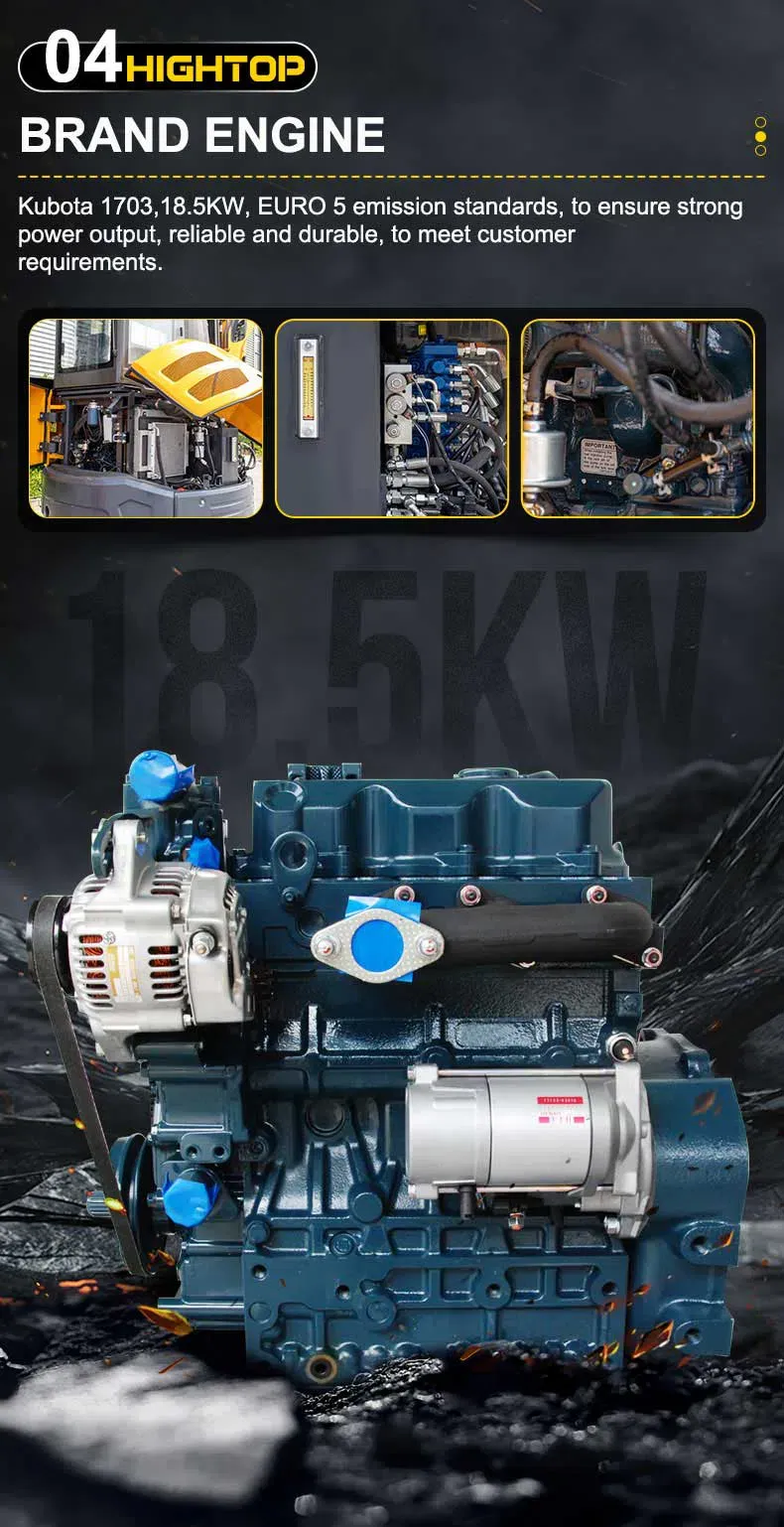

| Engine :Kubota Engine D1703 | Valve pressure:24MP |

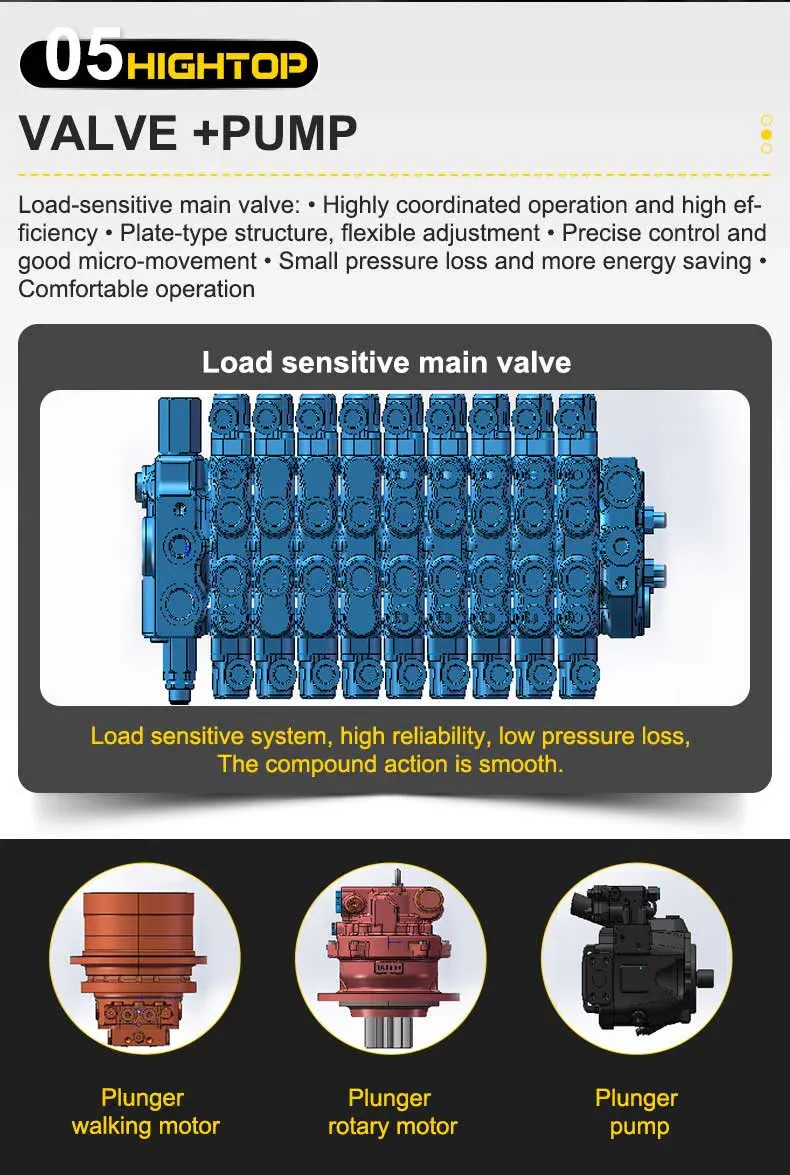

| Flow sharing main valve :HVSE-09-09-P270-BE212 | Pump displacement:40cc |
| Swash plate axial plunger variable pump :HP5V45/AV10RB2S2MGA-L1/1-HT1 | Travel speed :4.2/2.4km/h |
| Travel motor :Variable plunger motor | Enqine oil capacity :5.1L |
| Fuel tank :Capacity 50L | Valve svstem flow :79.2L/min |
| Cooling system :Capacity 5.05L | Pump Max.speed :3250r/min |
| Hydraulic oil tank :Capacity 55L | |

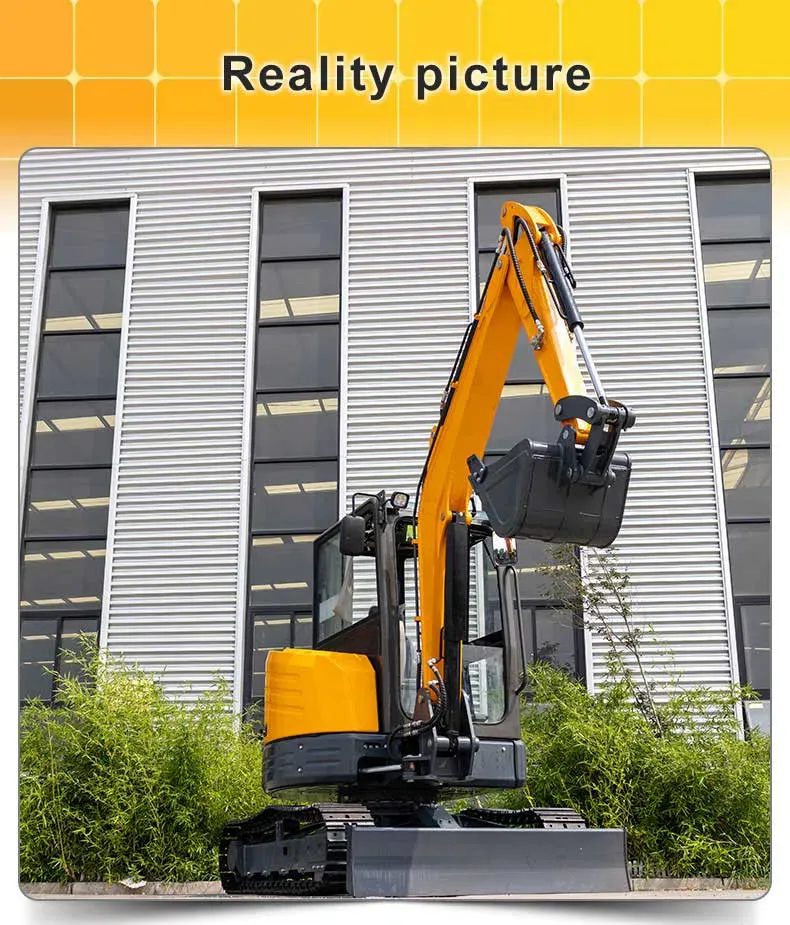

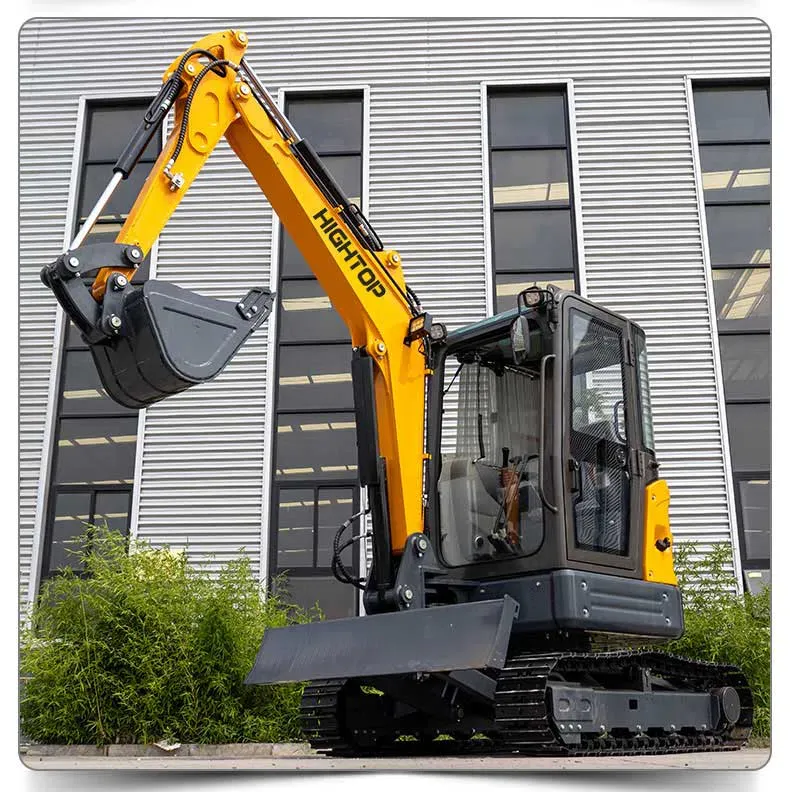

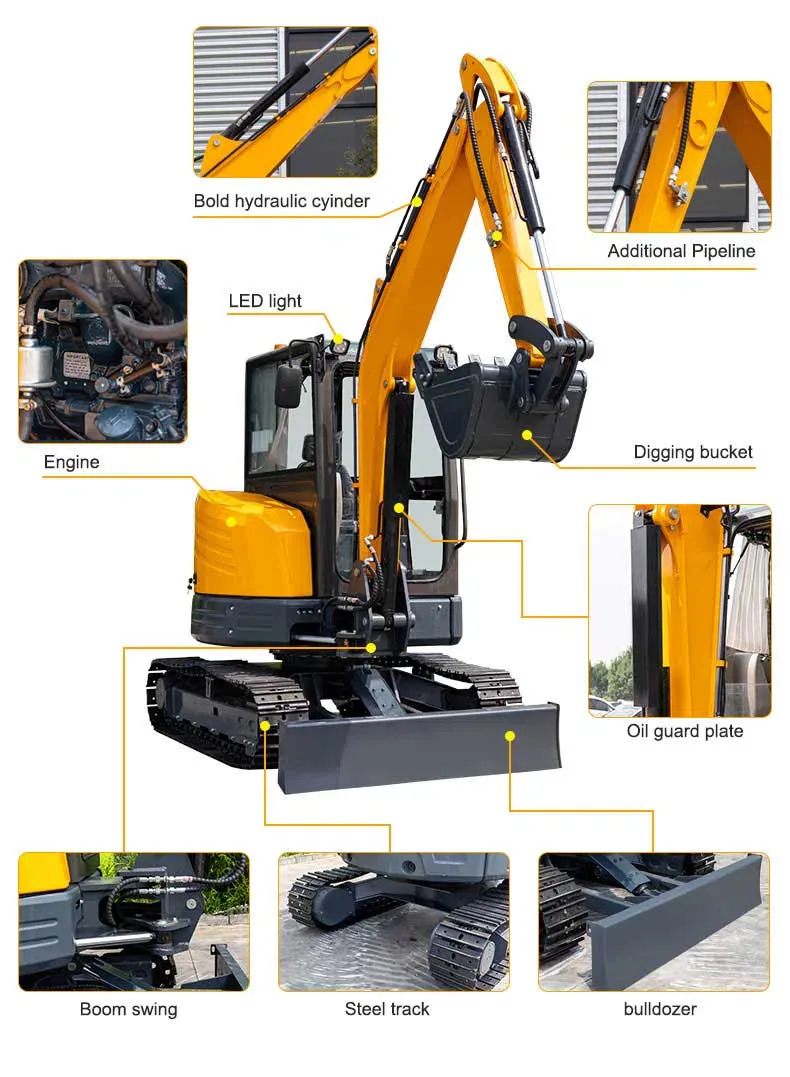

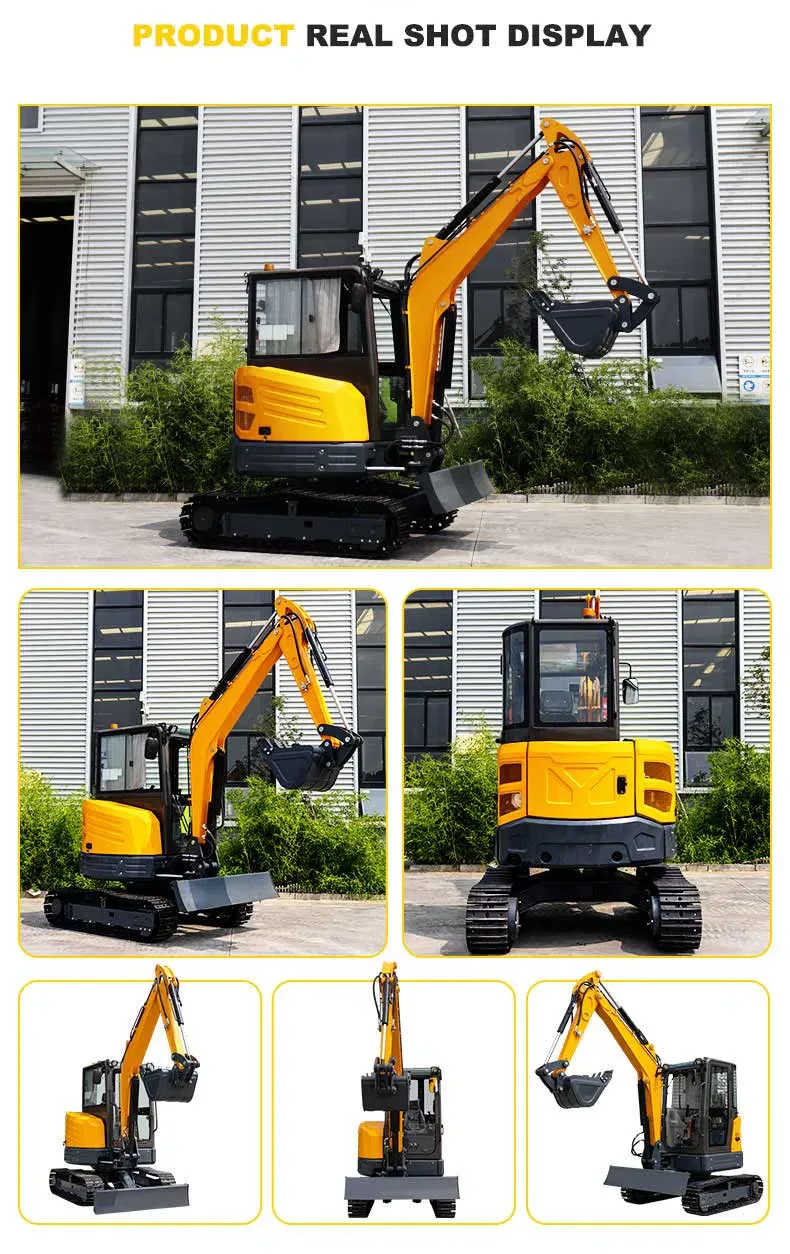

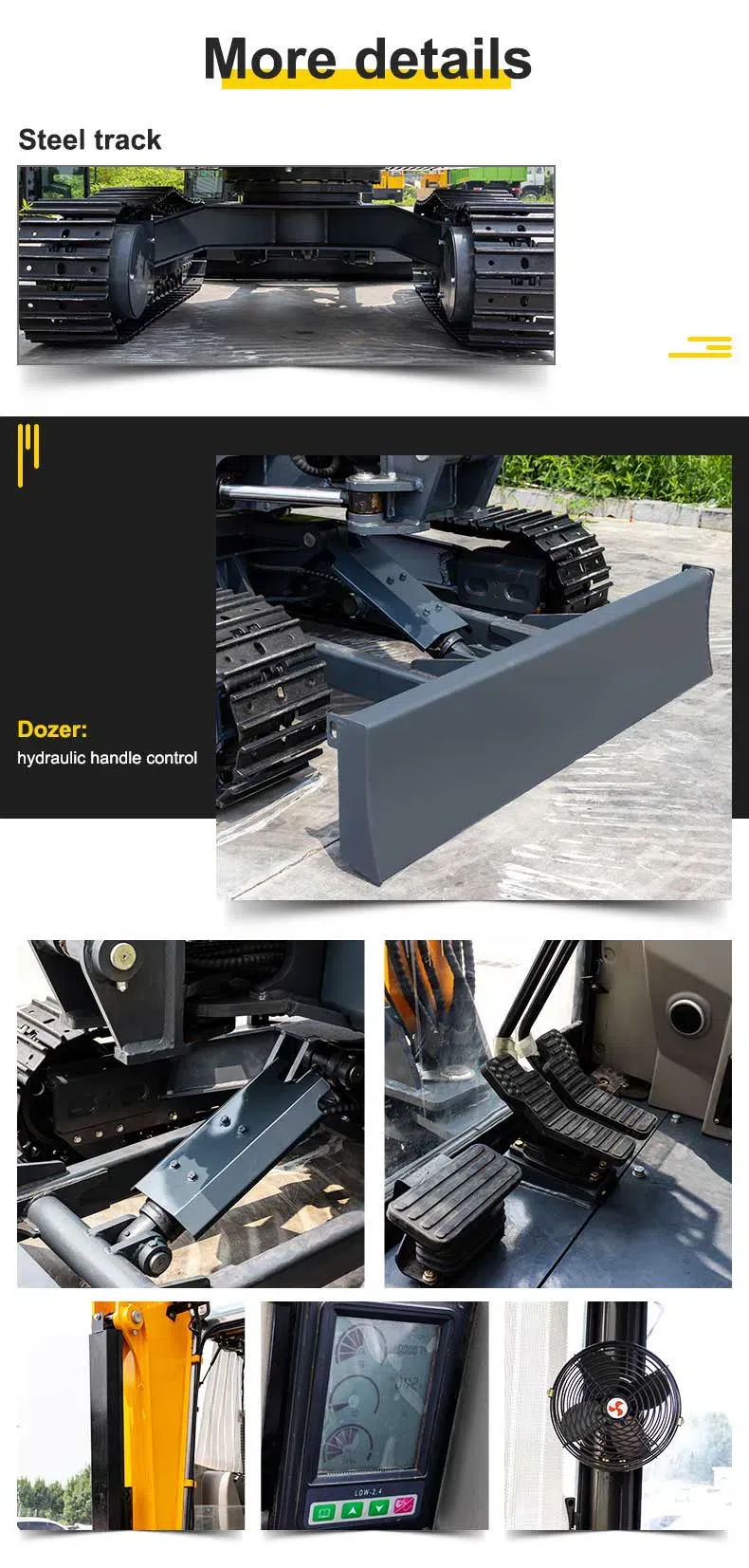

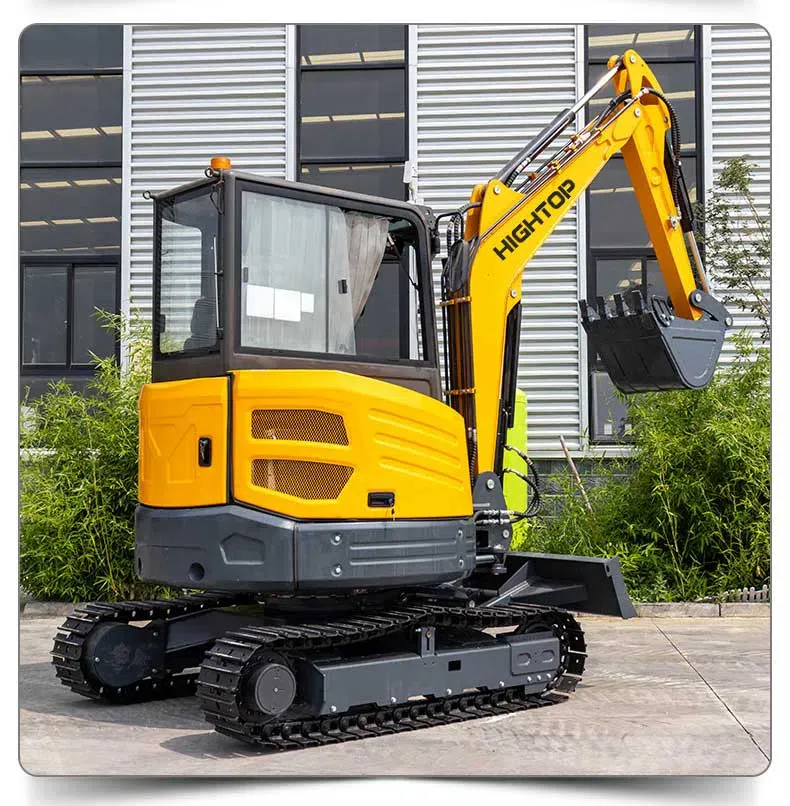

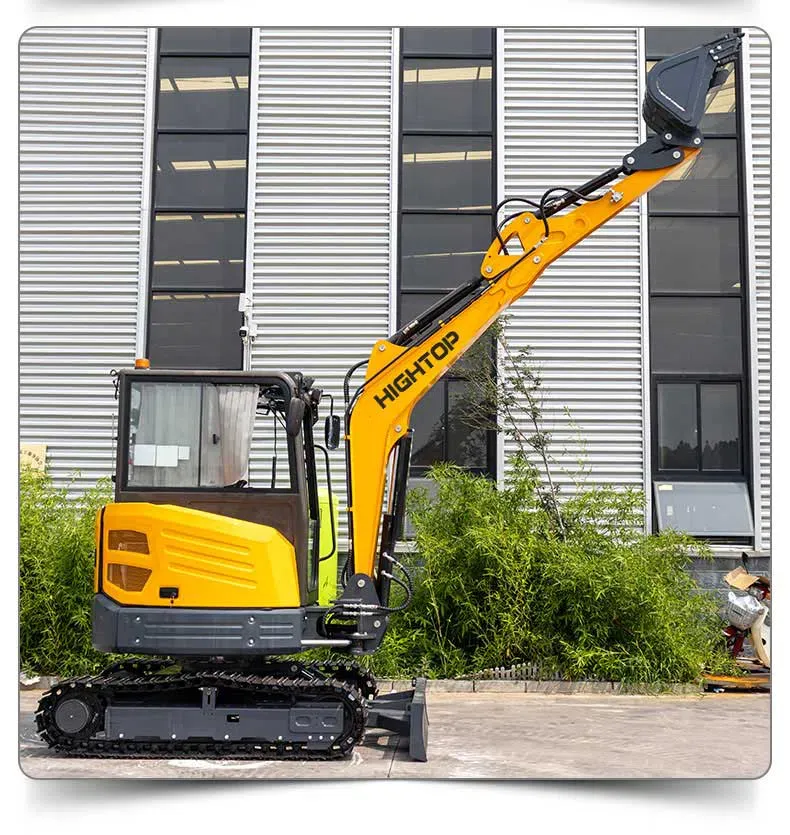

Product Images
