HT15-10 Backhoe Loader Specification
| Parameter | Specification |
|---|---|
| Model | HT15-10 |
| Max. Excavating Depth | 2000 mm |
| Falling Time of Movable Arm | 3 s |
| Max. Excavating Height | 3600 mm |
| Summational Time | 10 s |
| Max. Excavating Radius | 5000 mm |
| Max. Breakout Force | 20 kN |
| Bucket Capacity | 0.1 m³ |
| Engine Brand Model | Yunnei |
| Max. Hauling Force | 23 kN |
| Number of Cylinder | 4 Cylinder |
| Max. Swing Angle of Boom | 180° |
| Electric System Voltage | 24 V |
| Max. Dumping Height | 2300 mm |
| Rated Power | 42 kW (57 HP) |
| Min. Turning Radius | 3500 mm |
| Tyre Model | 20.5/70-16 |
| Max. Dumping Distance | 900 mm |
| Rated Revolution | 2400 r/min |
| Ground Clearance | 230 mm |
| Maximum Forward Speed | 30 km/h |
| Loading Mass | 1000 kg |
| Working Pressure | 20 MPa |
| Drive | 4 Wheel Drive |
| Total Weight | 3990 kg |
| Gradeability | 25° |
| Distance Between Axles | 1725 mm |
| Lifting Time of Movable Arm | 4.5 s |
| Overall Dimension (L×W×H) | 5900 × 1860 × 2960 mm |

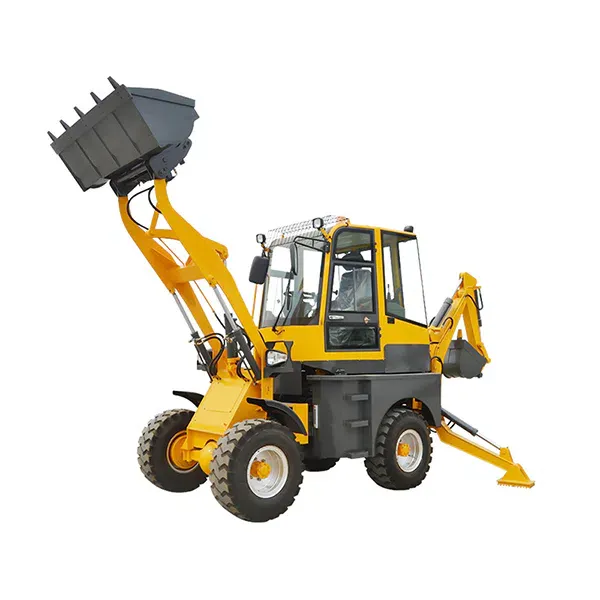

HT15-10 Backhoe Loader lmages
