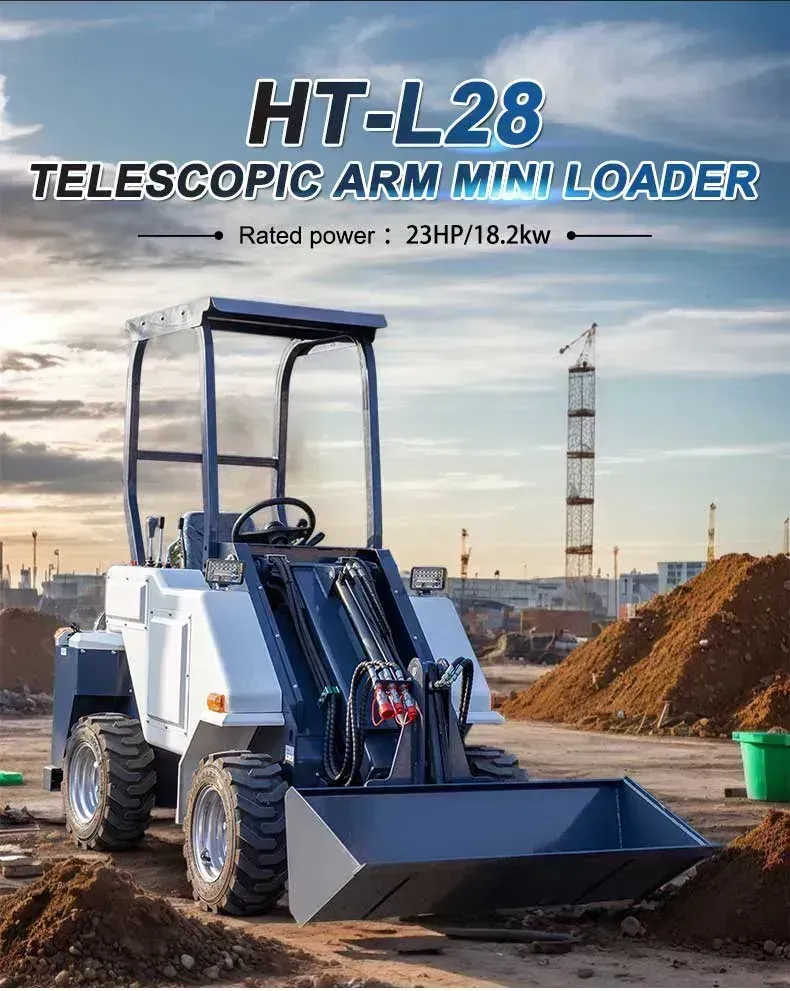

HT-L28 Telescopic Boom Mini Loader Instruction

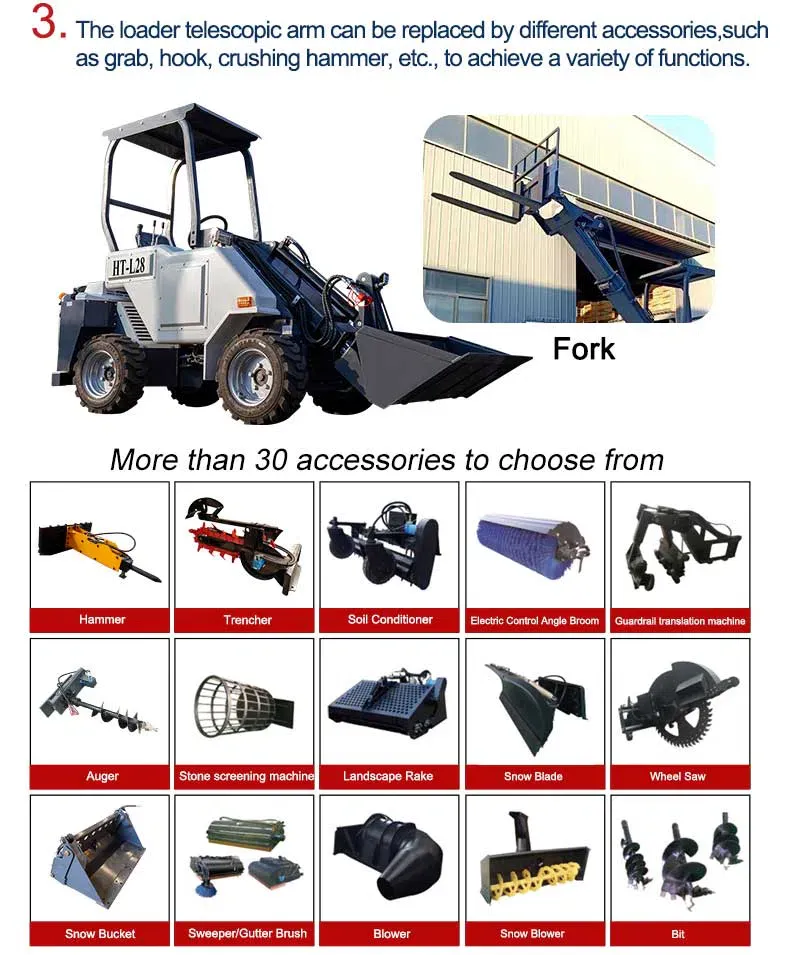

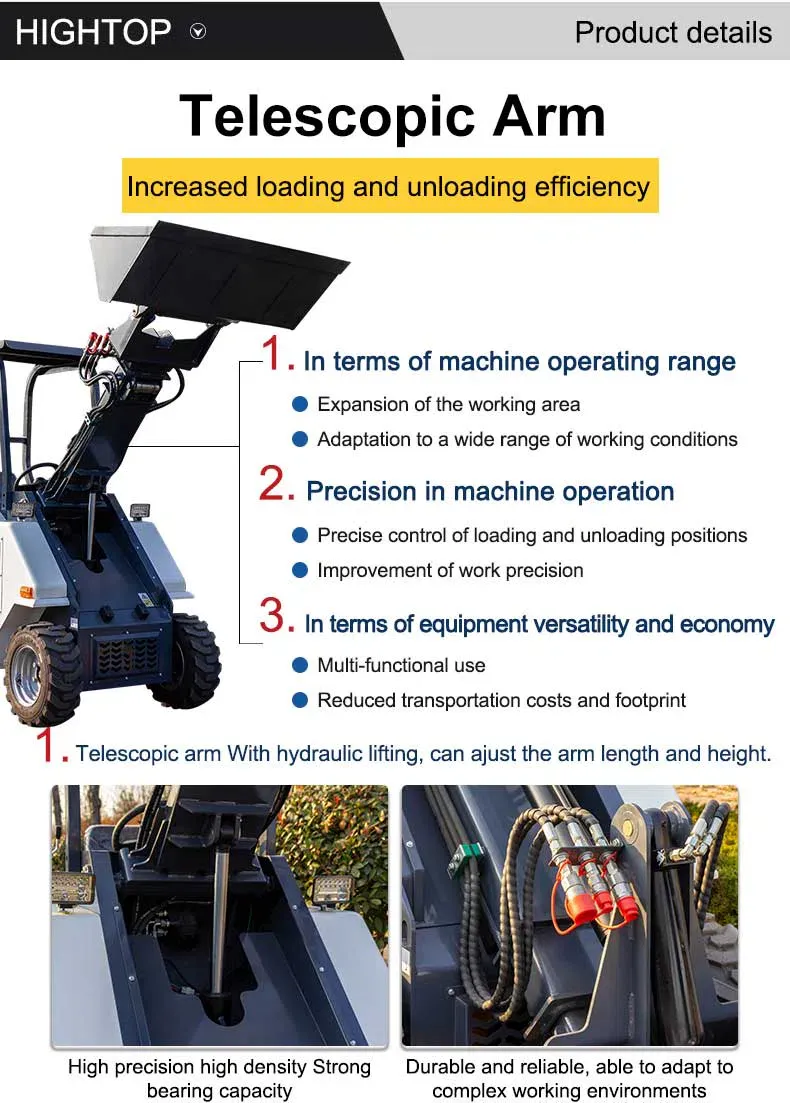

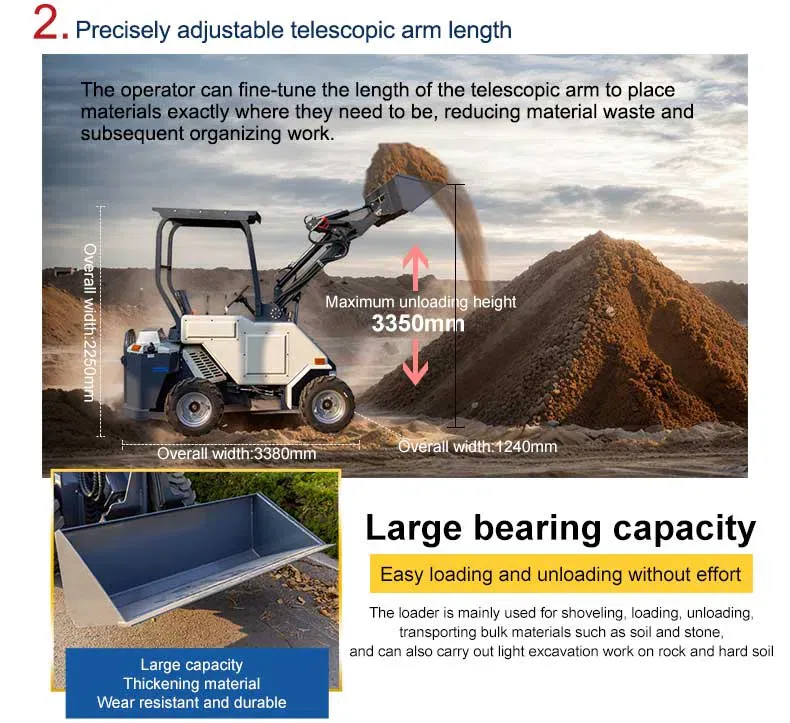

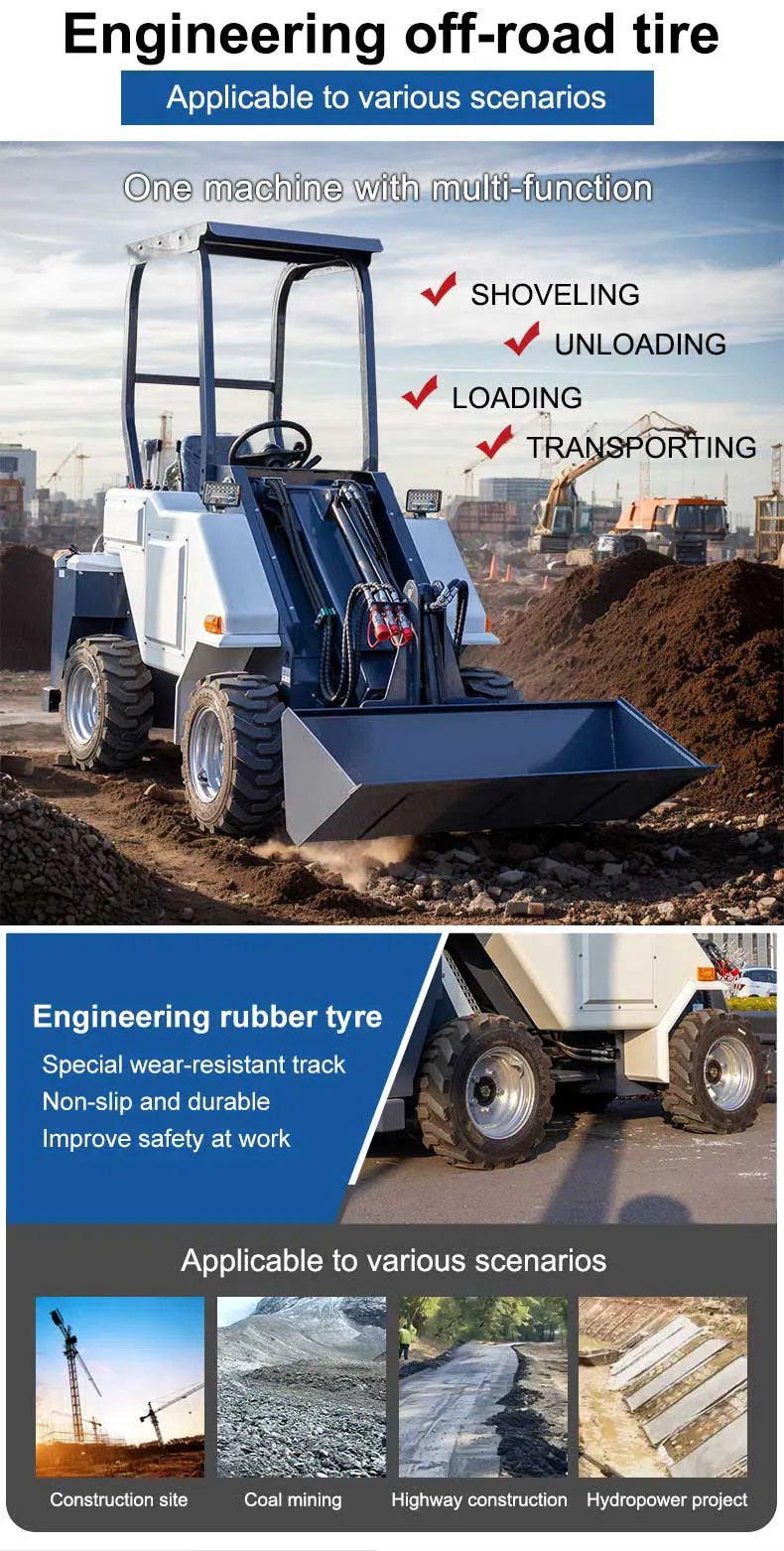

The machine features a telescopic arm with hydraulic lifting, allowing flexible adjustment of arm length and height to expand the working range and adapt to a wide variety of operating conditions. It ensures precise control during operation, enabling accurate loading and unloading positions while improving overall work precision and reducing material waste. With high precision, strong density, and excellent load-bearing capacity, the equipment is durable, reliable, and suitable for complex environments. In addition, it offers strong versatility and economic value through multi-functional use, reduced transportation costs, and a smaller footprint. The loader is ideal for shoveling, loading, unloading, and transporting bulk materials such as soil and stone, and can also perform light excavation on hard surfaces. By replacing the telescopic arm attachments—such as grabs, hooks, and crushing hammers—it can achieve multiple functions efficiently with easy, labor-saving operation.

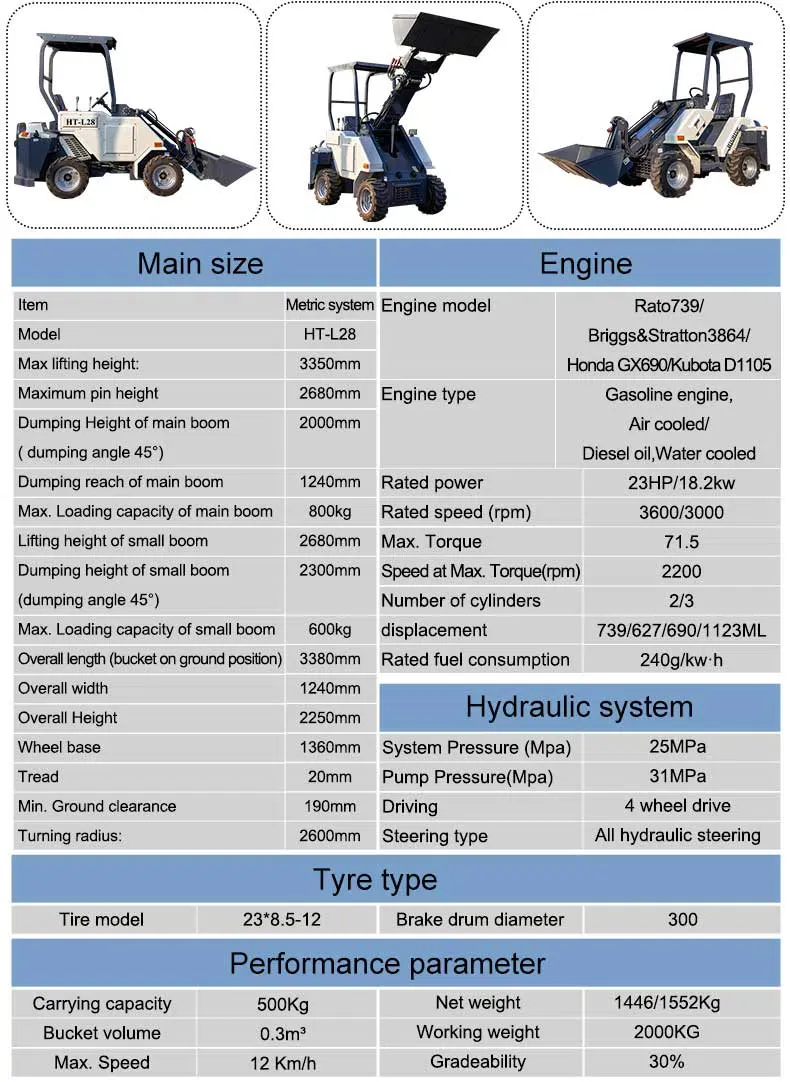

HT-L28 Telescopic Boom Mini Loader Parameter
| Item | Metric system |
|---|---|
| Model | HT-L28 |
| Max Lifting Height | 3350 mm |
| Maximum Pin Height | 2680 mm |
| Dumping Height of Main Boom (45°) | 2000 mm |
| Dumping Reach of Main Boom | 1240 mm |
| Max Loading Capacity of Main Boom | 800 kg |
| Lifting Height of Small Boom | 2680 mm |
| Dumping Height of Small Boom (45°) | 2300 mm |
| Max Loading Capacity of Small Boom | 600 kg |
| Overall Length (Bucket on Ground) | 3380 mm |
| Overall Width | 1240 mm |
| Overall Height | 2250 mm |
| Wheel Base | 1360 mm |
| Tread | 20 mm |
| Min Ground Clearance | 190 mm |
| Turning Radius | 2600 mm |
| Engine Model | Rato739 / Briggs & Stratton 3864 / Honda GX690 / Kubota D1105 |
| Engine Type | Gasoline air-cooled / Diesel water-cooled |
| Rated Power | 23 HP / 18.2 kW |
| Rated Speed | 3600 / 3000 rpm |
| Max Torque | 71.5 |
| Speed at Max Torque | 2200 rpm |
| Number of Cylinders | 2 / 3 |
| Displacement | 739 / 627 / 690 / 1123 ml |
| Rated Fuel Consumption | 240 g/kW·h |
| System Pressure | 25 MPa |
| Pump Pressure | 31 MPa |
| Driving | 4 wheel drive |
| Steering Type | All hydraulic steering |
| Tire Model | 23×8.5-12 |
| Brake Drum Diameter | 300 |
| Carrying Capacity | 500 kg |
| Bucket Volume | 0.3 m³ |
| Max Speed | 12 km/h |
| Net Weight | 1446 / 1552 kg |
| Working Weight | 2000 kg |
| Gradeability | 30% |

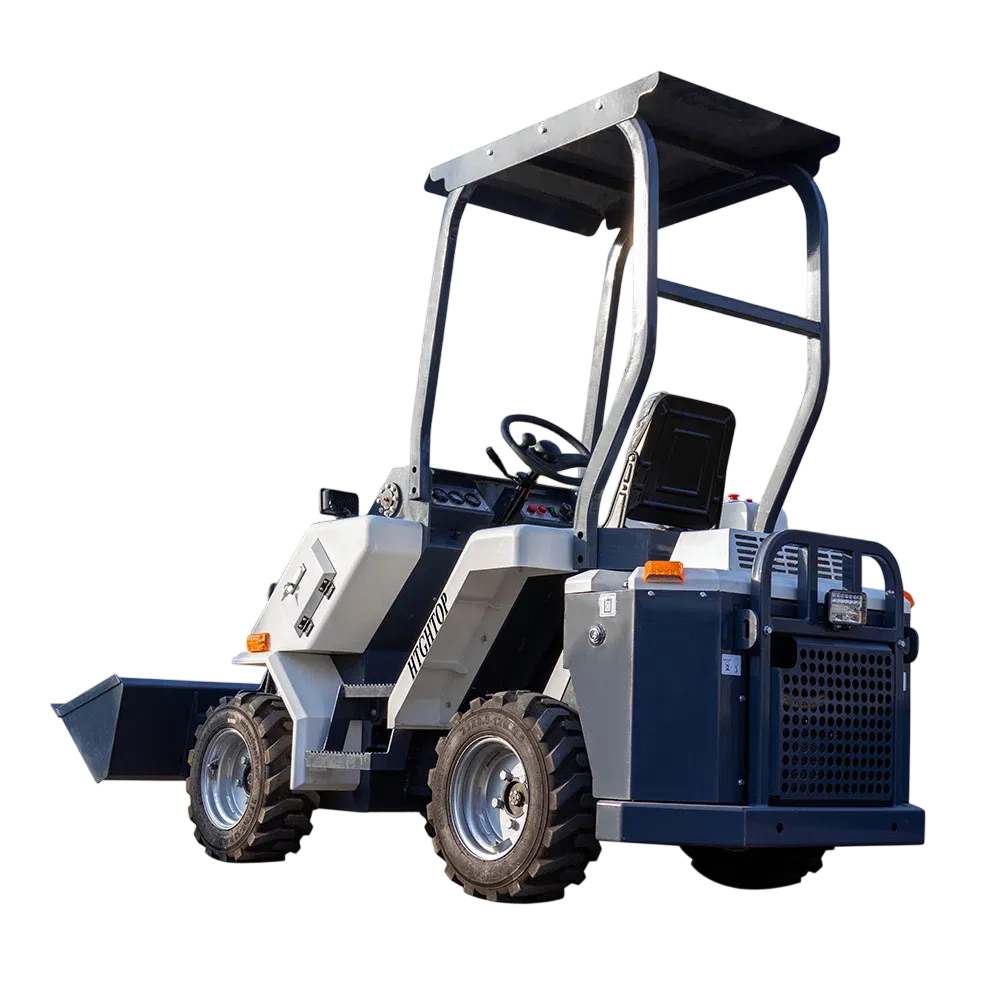

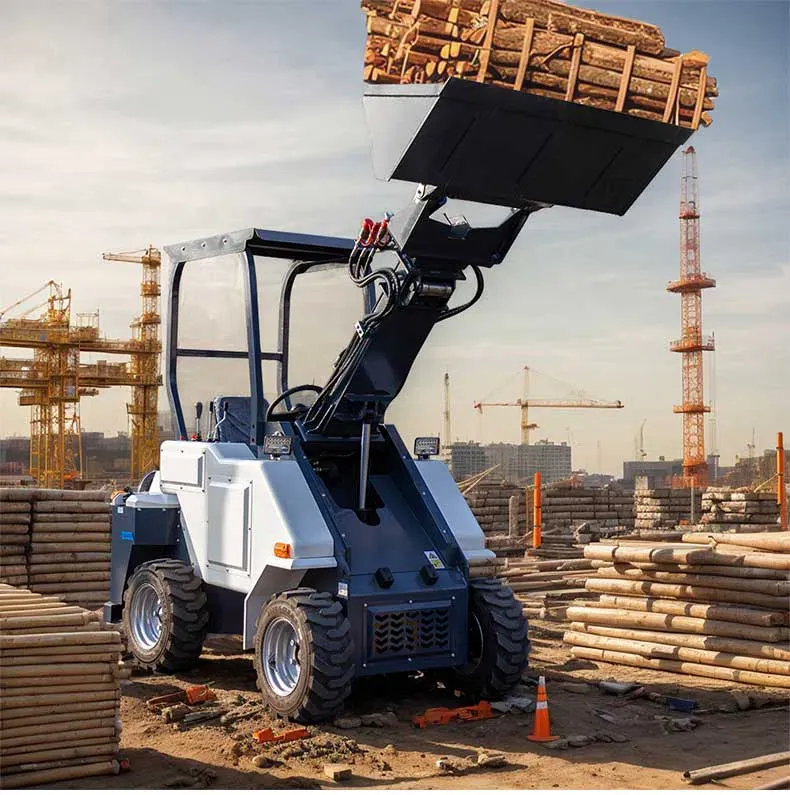

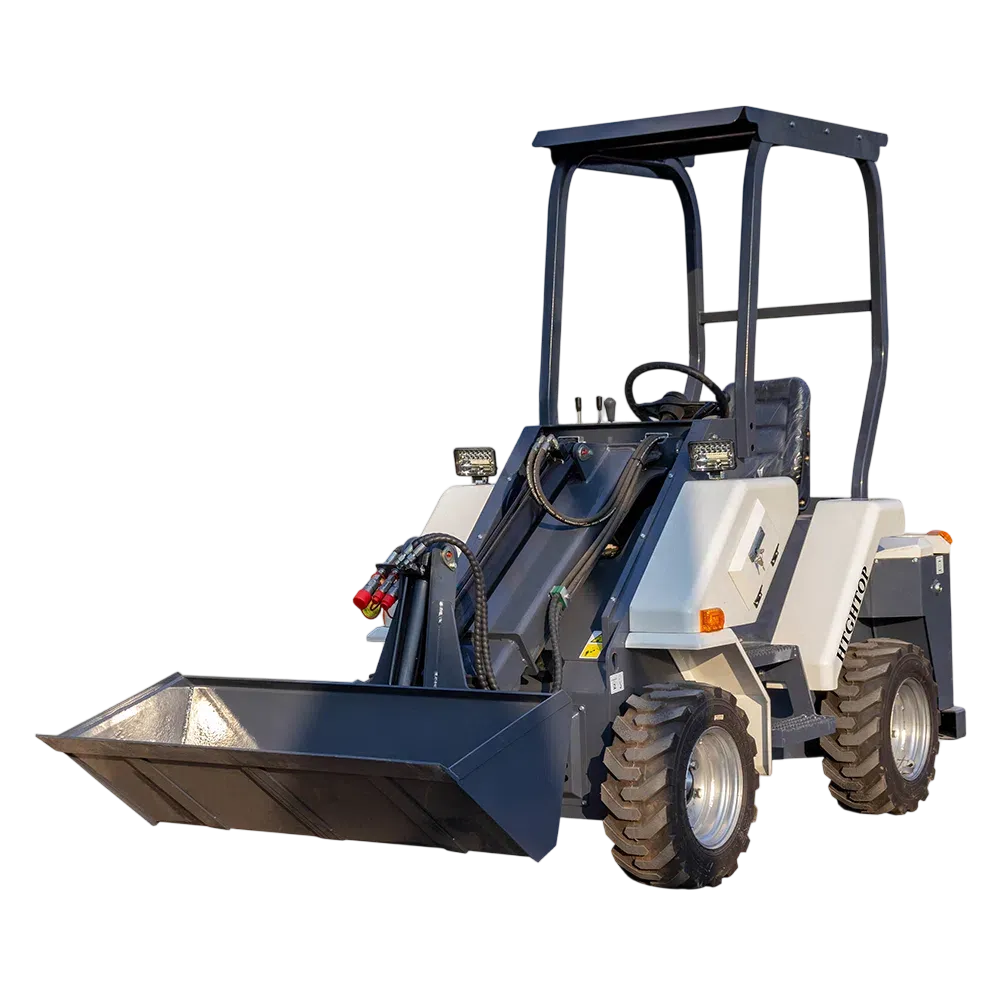

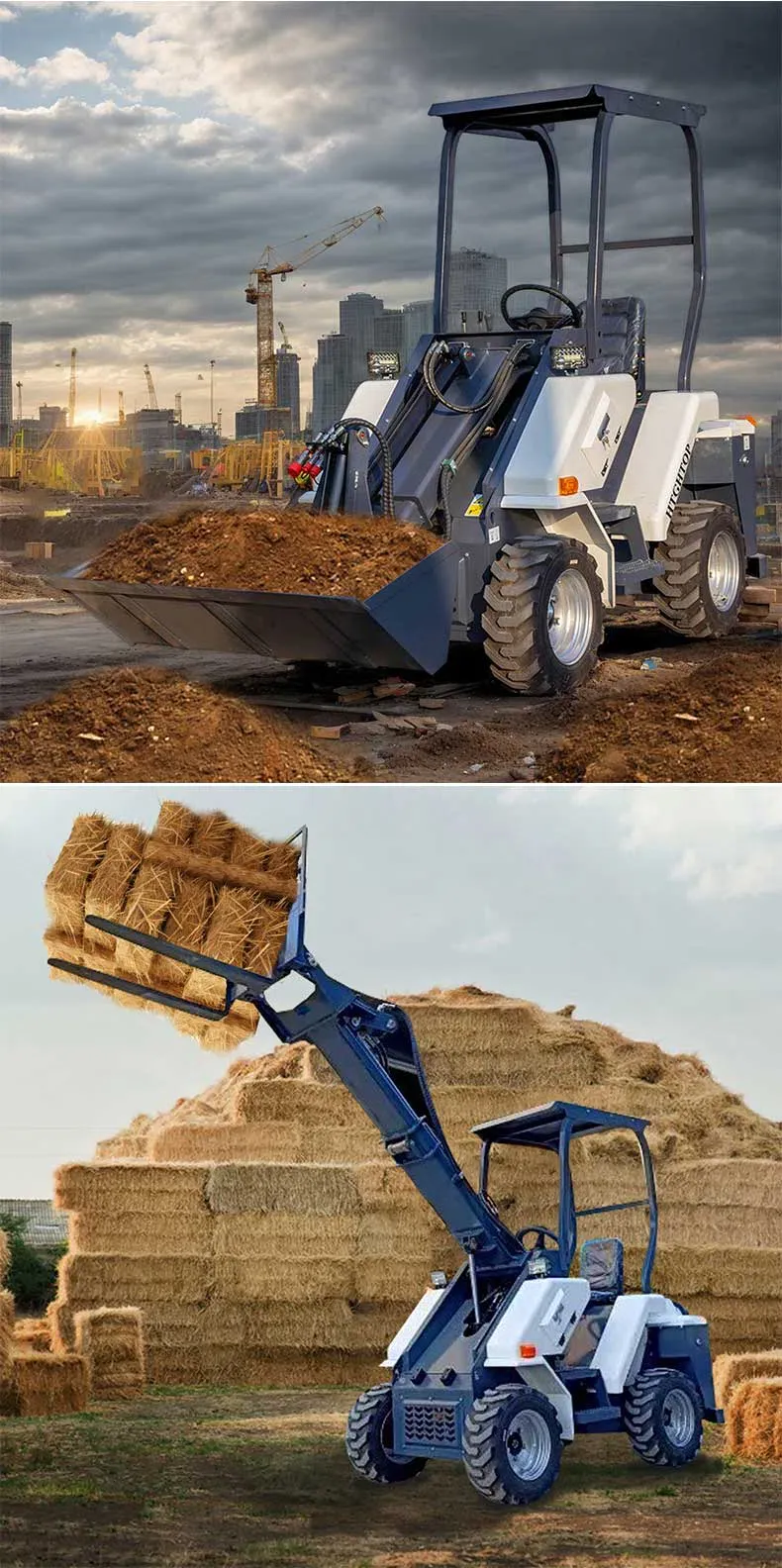

HT-L28 Telescopic Boom Mini Loader Images
