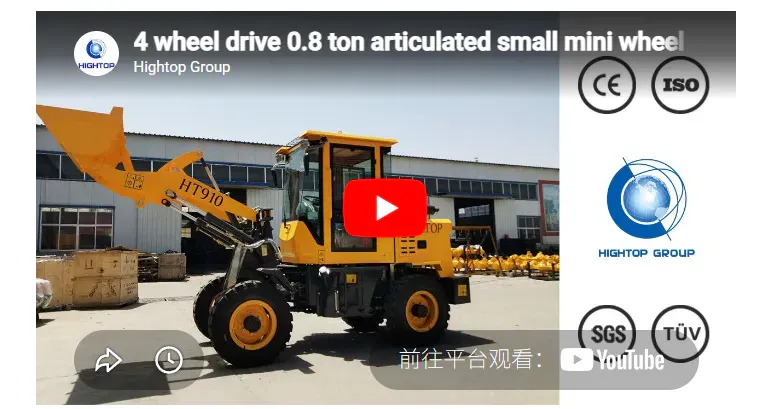

HT910 Wheel Loader Description
The HT910 Wheel Loader is a compact and versatile machine designed for efficient material handling across a wide range of applications. Equipped with a reliable 28HP engine and a rated load capacity of 800kg, it delivers strong performance for tasks such as loading, transporting, and site maintenance. Its compact structure and flexible steering make it ideal for working in narrow spaces, while the front hinge and rear sway design ensure stability on uneven terrain. With a 0.4m³ bucket, high unloading height, and durable construction, the HT910 offers a practical balance of power, efficiency, and ease of operation for farms, construction sites, and light industrial use.
HT910 Wheel Loader Parameter
| Parameter | Specification |
|---|---|
| Model | HT910 |
| Machine Weight | 2200 kg |
| Rated Load Weight | 800 kg |
| Bucket | 0.4 m³ |
| Engine | Changjia 28HP |
| Power | 20 kW |
| Rated Speed | 2200 r/min |
| Dump Height | 2350 mm |
| Dump Reach | 700 mm |
| Tread | 1090 mm |
| Wheelbase | 1870 mm |
| Minimum Ground Clearance | 250 mm |
| Tyre | 750-16 |
| Structure | Front hinge and rear sway |
| Overall Dimension (L×W×H) | 4500 × 1300 × 2250 mm |
