The body of the vehicle is formed by stamping thickened steel plateswhich has strong impact resistanceThe front axle is designed as a fully floating integrated structure, whilethe rear axle is a dedicated heavy-duty axleBraking system: Dual safety of handbrake and oil brake.Both the walking motor and thehydraulic lifting motor adopt Depuda3W AC motorsFast response, low noise, long servicelife,suitable for high-intensity operations.

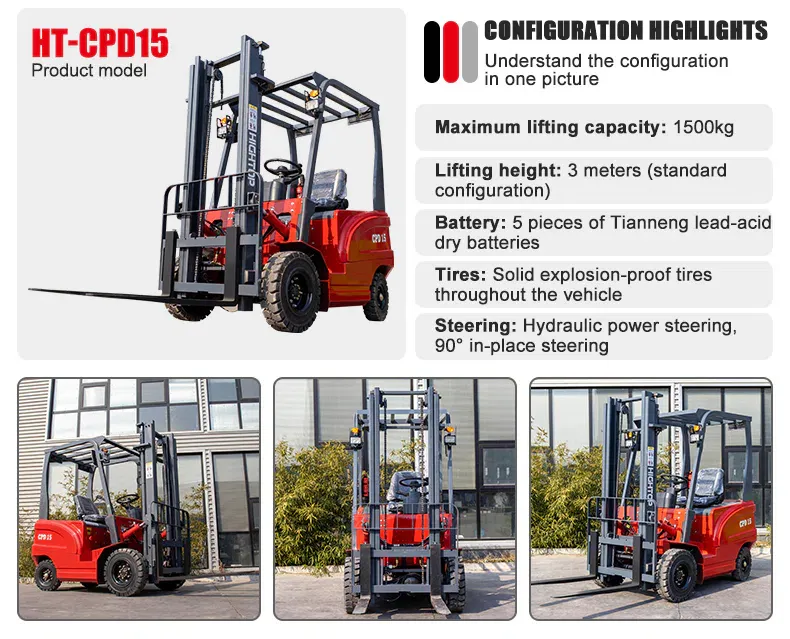

CONFGURATIOM HIGHLIGHTS
Understand the configurationin one picture
Maximum lifting capacity: 1500kg
Lifting height: 3 meters (standardconfiguration)
Battery: 5 pieces of Tianneng lead-aciddry batteries
Tires: Solid explosion-proof tiresthroughout the vehicle
Steering: Hydraulic power steering90°in-place steering

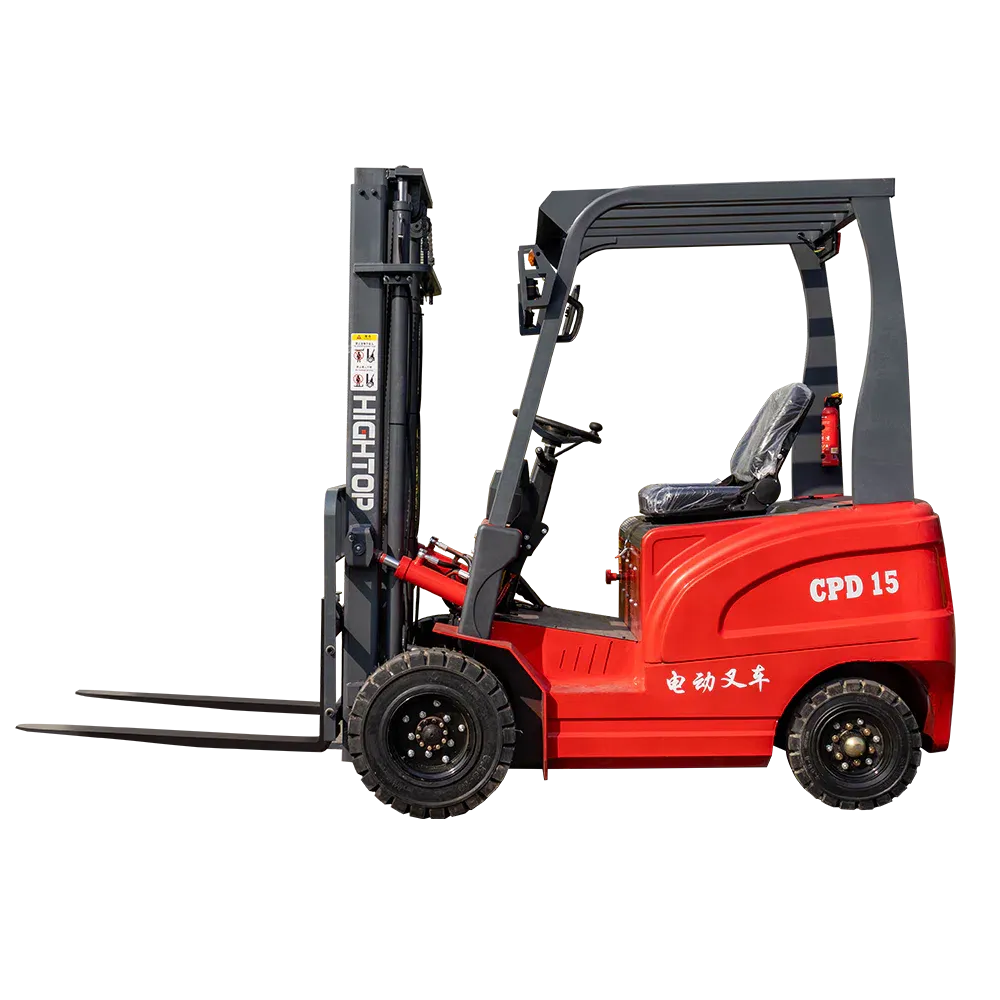

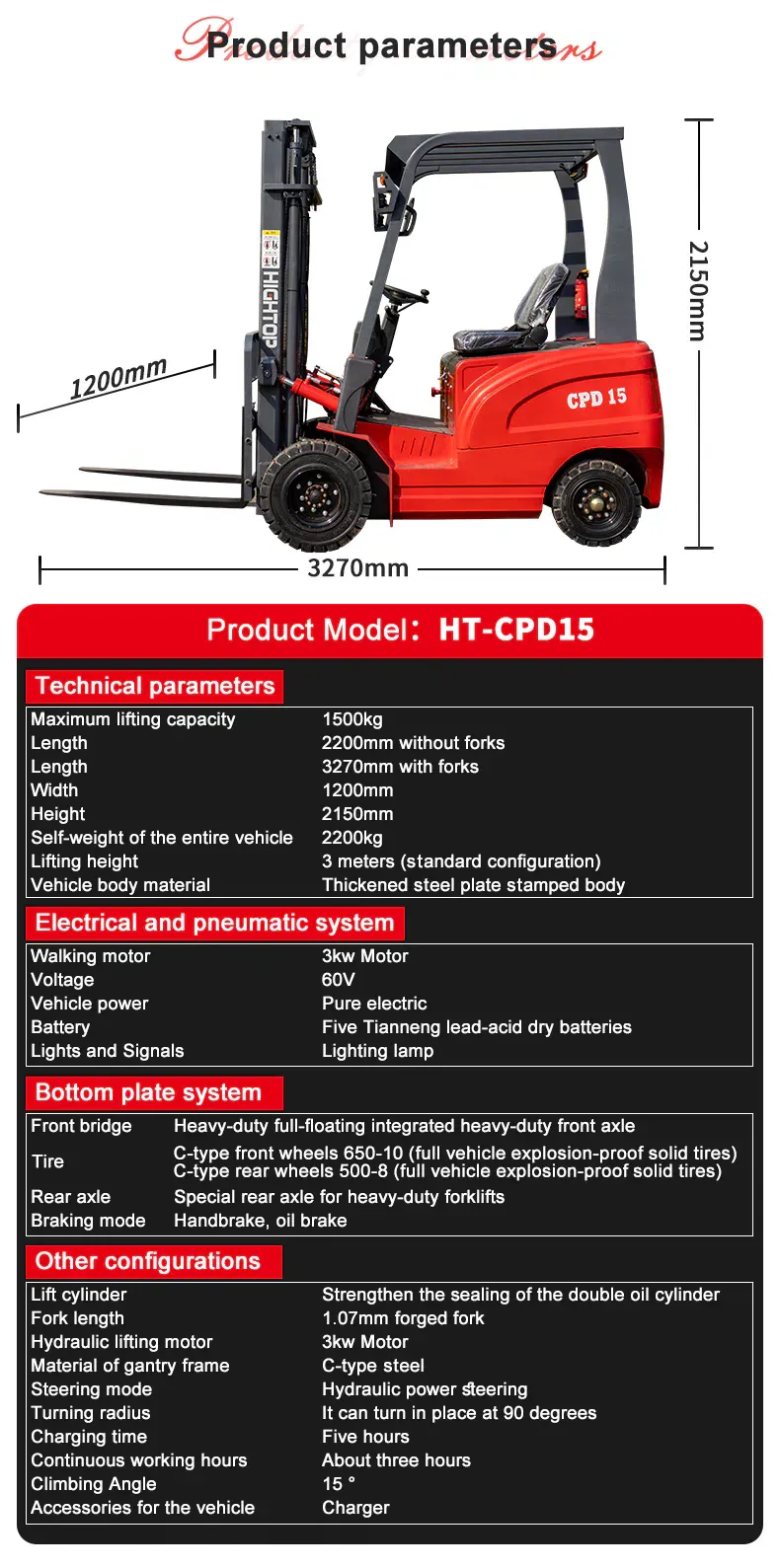

HT-CPD15 Electric Forklift Parameter
| Technical parameters | |
| Maximum lifting capacity | 1500kg |
| Length | 2200mm without forks |
| Length | 3270mm with forks |
| Width | 1200mm |
| Height | 2150mm |
| Self-weight of the entire vehicle | 2200kg |
| Lifting height | 3 meters (standard confguration) |
| Vehicle body material | Thickened steel plate stamped body |
| Technical parameters | |
| Walking motor | 3kw Motor |
| Voltage | 60V |
| Vehicle power | Pure electric |
| Battery | Five Tianneng lead-acid dry batteries |
| Lights and Signals | Lighting lamp |
| Bottom plate system | |
| Front bridge | Heavy-duty full-floating integrated heavy-duty front axle |
| Tire | C-type front wheels 650-10 (full vehicle explosion-proof solid tires) C-type rear wheels 500-8 (full vehicle explosion-proof solid tires) |
| Braking mode | Handbrake, oil brake |
| Other configurations | |
| Lift cylinder | Strengthen the sealing of the double oil cylinder |
| Fork length | 1.07mm forged fork |
| Hydraulic lifting motor | 3kw Motor |
| Material of gantry frame | C-type steel |
| Steering mode | Hydraulic power steering |
| Turning radius | It can turn in place at 90 degrees |
| Charging time | Five hours |
| Continuous working hours | About three hours |
| Climbing Angle | 15° |
| Accessories for the vehicle | Charger |
