HTEL06 Electric Loader Instruction
The HTEL06 Electric Loader is a compact and eco-friendly machine designed for efficient and versatile material handling across a wide range of environments. Powered by a pure electric system, it delivers zero emissions and low-noise operation, making it ideal for urban construction, indoor use, and night work. With significantly reduced energy and maintenance costs, it offers long-term economic benefits through its simple motor structure and maintenance-free battery system. Despite its compact size, it provides strong performance with instant torque, a 450kg load capacity, and stable operation even in extreme temperatures from -20°C to 50°C. Easy to operate and highly adaptable, it is well-suited for farms, construction sites, logistics operations, factories, and municipal projects.
HTEL06 Electric Loader Parameter
| Parameter item | Unit | Model/Data | |
| Overall Parameters | Model No. | HTEL06 | |
| Overall Weight | KG | 1320 | |
| Loading capacity (including accessory weight) | KG | 450 | |
| Bucket Capacity | m³ | 0.15 | |
| Fuel type | Battery Pack | ||
| Low-speed gear maximum speed | Km/h | 10 | |
| Maximum speed in high gear | Km/h | 13 | |
| Minimum turning radius | mm | 2876 | |
| Wheels quantity | F/R | 2/2 | |
| Battery Pack | Battery model | 6-EVF-150A | |
| Battery type | Lead-acid battery | ||
| Battery quantity | 5 | ||
| Battery Capacity | Ah | 150 | |
| Rated Voltage | V | 60 | |
| Electrical system voltage | V | 12 | |
| Power system | Pump motor power | W | 3000 |
| Pump displacement | ml/r | 16 | |
| RPM | Low-speed 650 r/min, High-speed 1800 r/min | ||
| System pressure | mpa | 16 | |
| Steering system | Steering system type | Hydraulic system | |
| System pressure | mpa | 16 | |
| Walking system | Power supply type | AC Control | |
| Voltage | V | 60 | |
| Motor quantity | 2 | ||
| Walking motor Power | W | 2500*2 | |
| Tyre size | 6.00-12 | ||
| Braking system | Work brake | Drum oil pressure braking |

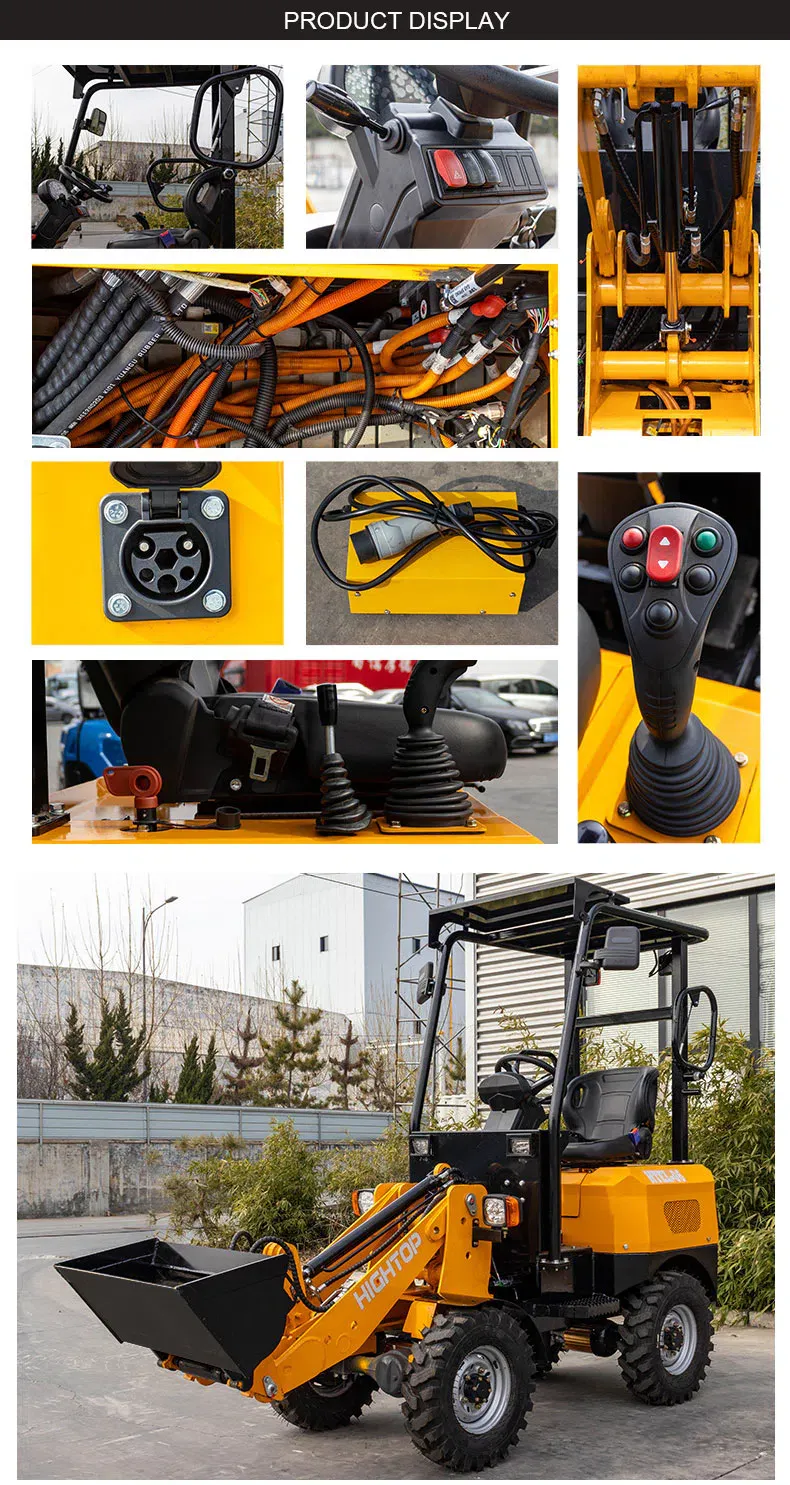

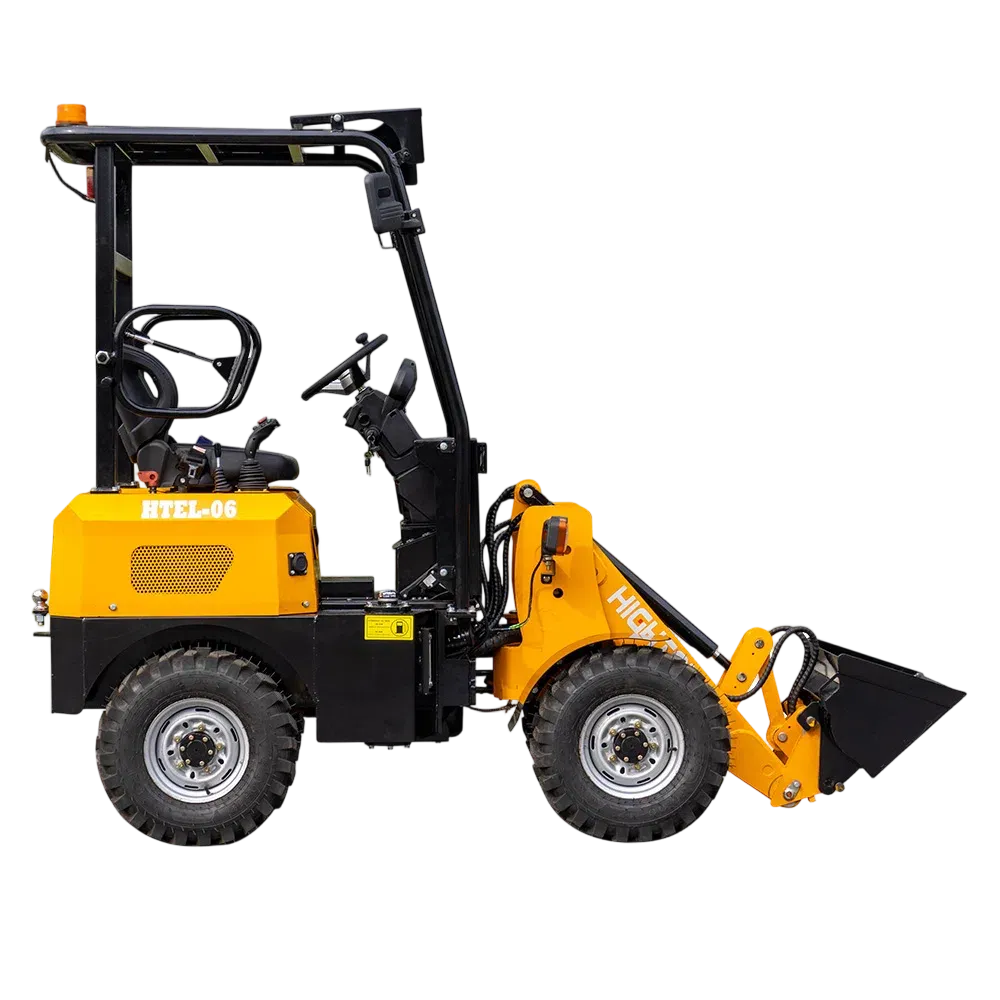

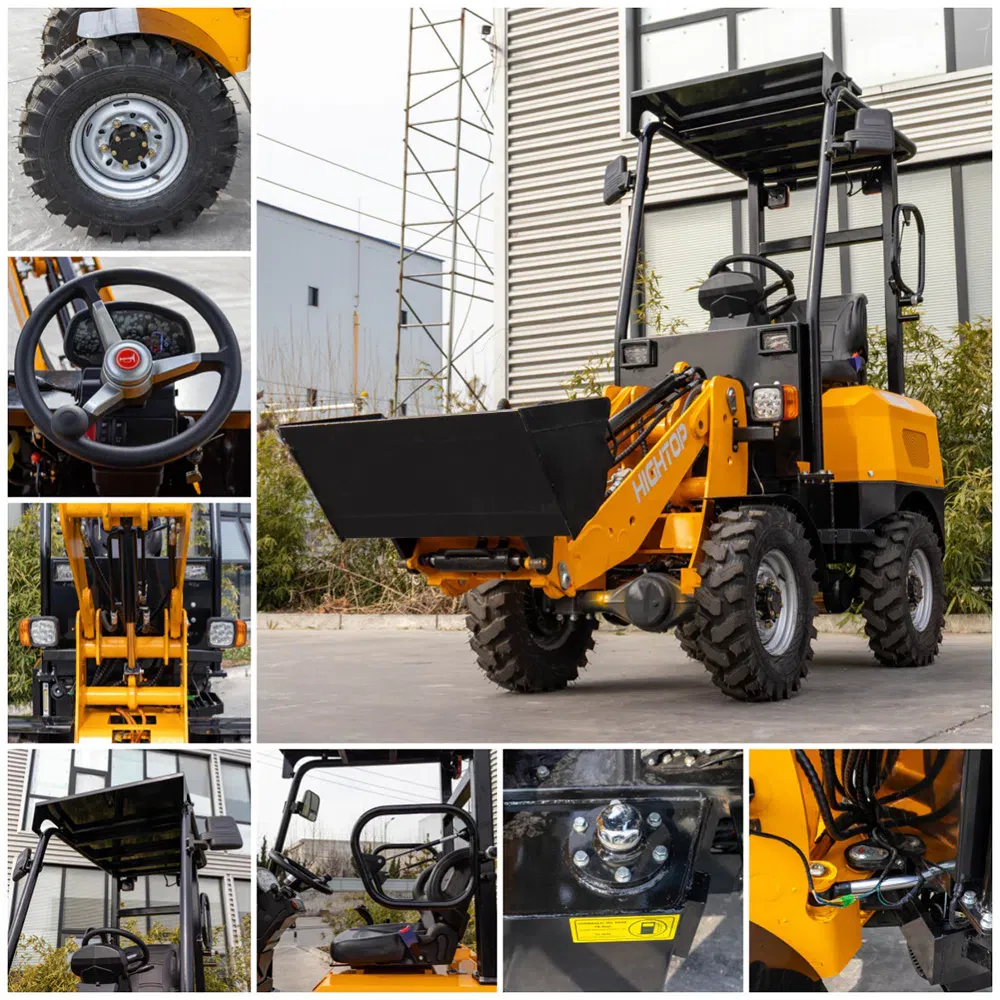

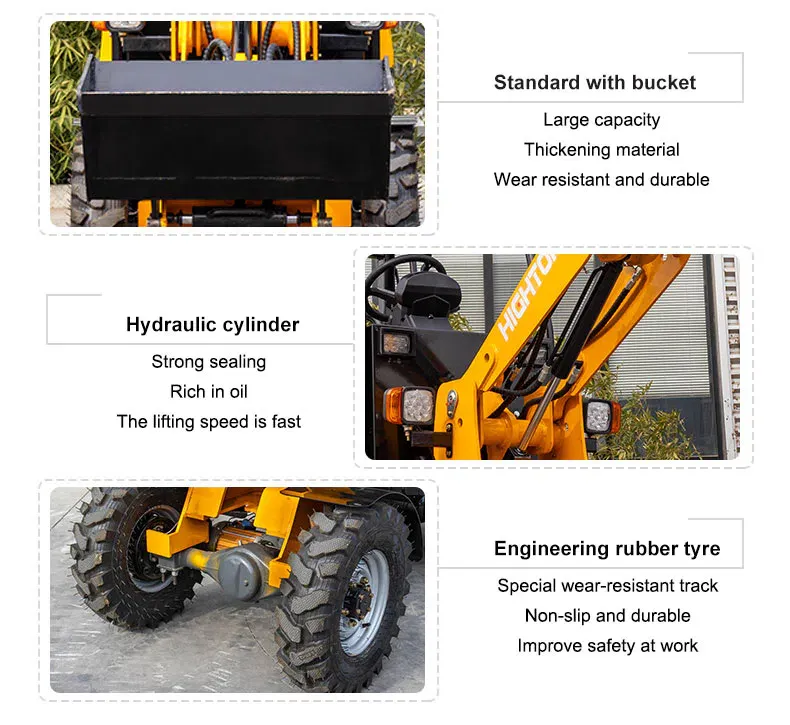

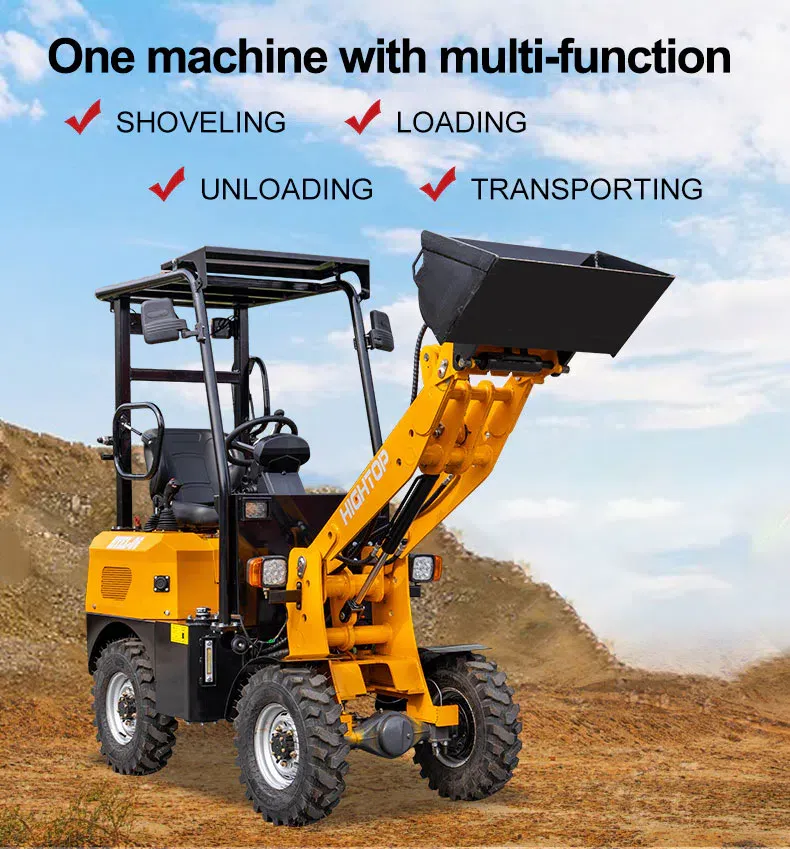

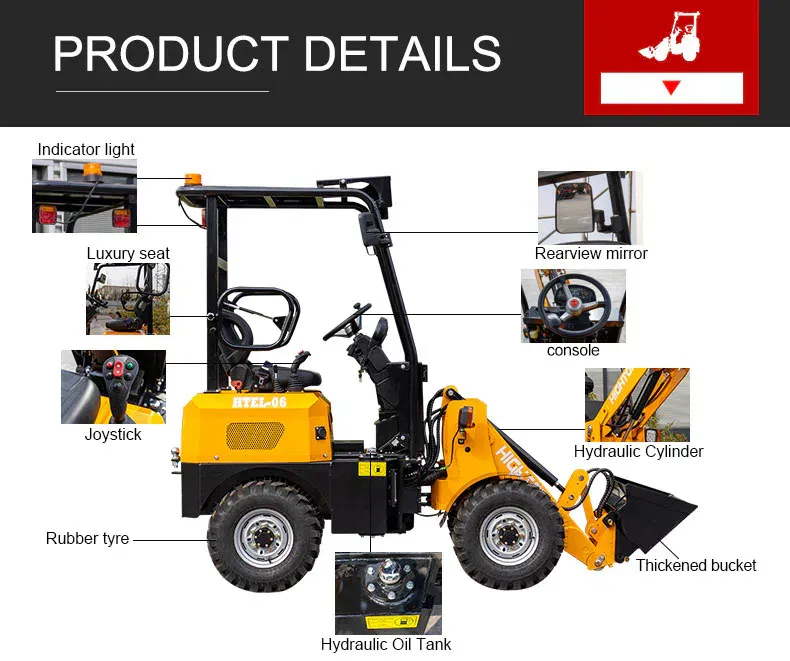

HTEL06 Electric Loader Images
