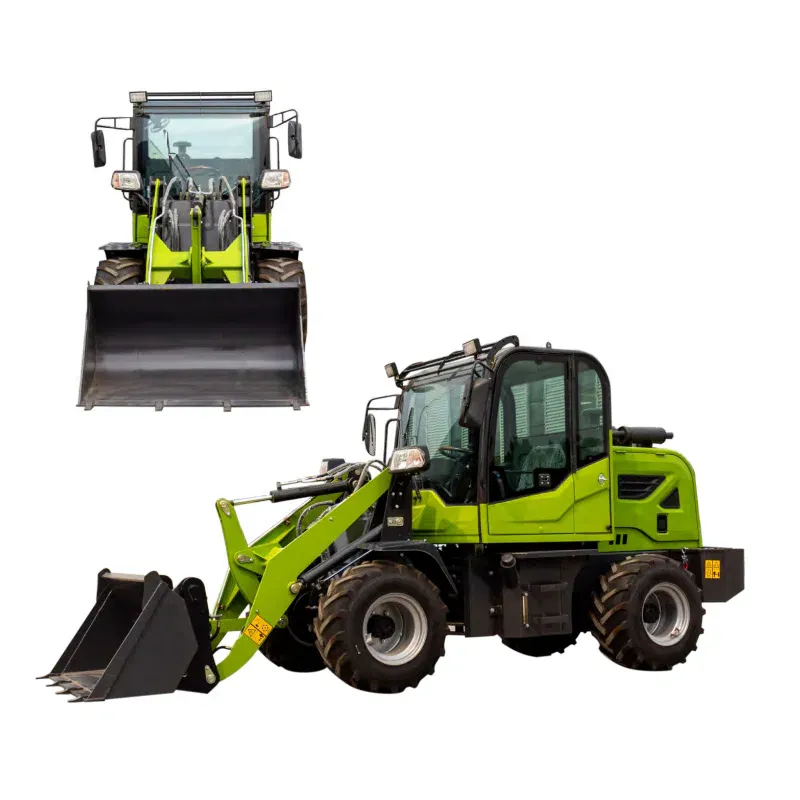

HT920 Wheel Loader Description
The HT920 Wheel Loader is a compact yet powerful machine designed for efficient performance in construction, agriculture, and material handling tasks. With a 0.43 m³ bucket capacity and a rated load of up to 800 kg, it delivers strong working capability while maintaining excellent maneuverability thanks to its small turning radius and compact dimensions. Powered by a reliable Weifang 490 engine (42 kW), the HT920 offers high fuel efficiency, stable performance, and reduced environmental impact. Its low operating weight (≤2400 kg), 35° climbing ability, and user-friendly mechanical control system make it easy to operate in tight or uneven job sites. Overall, the HT920 combines energy-saving design, durability, and practical functionality, making it an ideal choice for cost-effective daily operations.
HT920 Wheel Loader Parameter
| Model | HT920 |
|---|---|
| Bucket Capacity (m³) | 0.43 |
| Bucket Width (mm) | 1300 |
| Operating Weight (kg) | ≤2400 |
| Rated Load (kg) | ≤800 |
| Max Climb Capability (°) | 35 |
| Minimum Turning Radius (mm) | 4500 |
| Overall Length (mm) | ≤4380 |
| Maximum Width (mm) | 1300 |
| Maximum Height (mm) | 2200 |
| Maximum Dumping Height (mm) | 2500 |
| Dump Reach (mm) | 700 |
| Minimum Ground Clearance (mm) | 240 |
| Overall Weight (kg) | ≤2200 |
| Engine Model | Weifang 490 |
| Rated Power (kW) | 42 |
| Number of Cylinders | 4 |
| Bore / Stroke (mm) | 90 × 100 |
| Service Braking Mode | Mechanical single joystick |
| Parking Brake Mode | Manual operation, pliers disc |
| Type | Tyre Type |
| Tire Size | 1000-16 |
| Front Tire Pressure (MPa) | 2.6 |
| Rear Tire Pressure (MPa) | 2.6 |
| Axle (Main Drive & Wheel Reducer) | Half-axle |
| Fuel Tank (L) | 35 |
| Hydraulic Tank (L) | 35 |
| Engine Oil (L) | 8 |
| Gearbox (L) | 16 |
| Braking System (L) | 1 |
